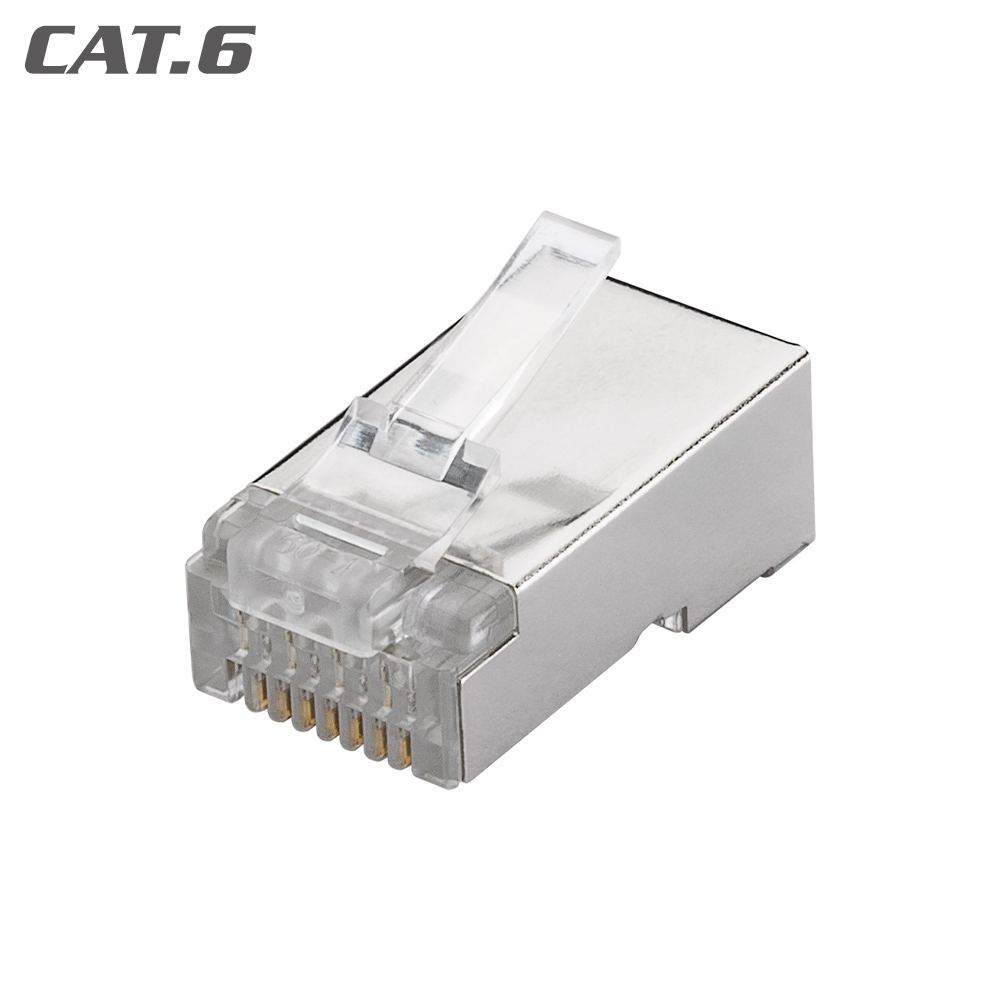

The 93829 Connector RJ45 STP Cat.6 Male, is a RJ45 Plug, CAT 6 STP with 4+4 pin assignment (SHIELDED), for round cable. It is used as a terminal connection for network cables, when connector shielding is needed and it has an Ethernet plug with latch lug and a sturdy plastic+metallic housing. It is suitable for flexible stranded and rigid solid inner conductors (AWG 23 - AWG 26) and it is a CAT 6 plug with 15 microns gold-plated contacts for a perfect transmission of electrical or optical signals Shielded RJ45 plug with 4+4 pin assignment
Technical features:
- Specification RJ45 male (8P8C), CAT 6, STP
- Shielding: Yes, CAT 6 STP
- Isolation: 1000 MO min
- Contacts: gold-plated tips 15µm, 4+4 Pin
- Bandwidth: 250 MHz
- AWG 26-23
- Housing material: Metal
- Color: Silver
Packaging:
- Sachets per 10 pieces
