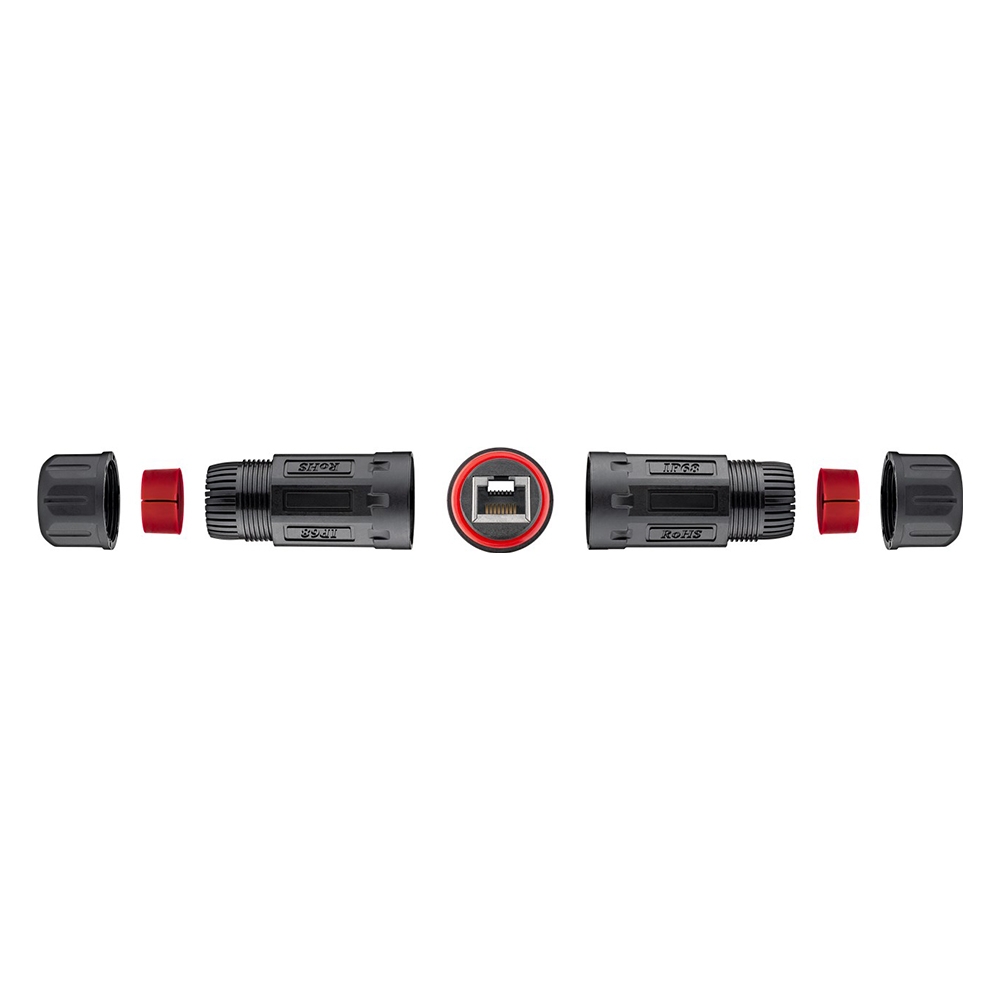

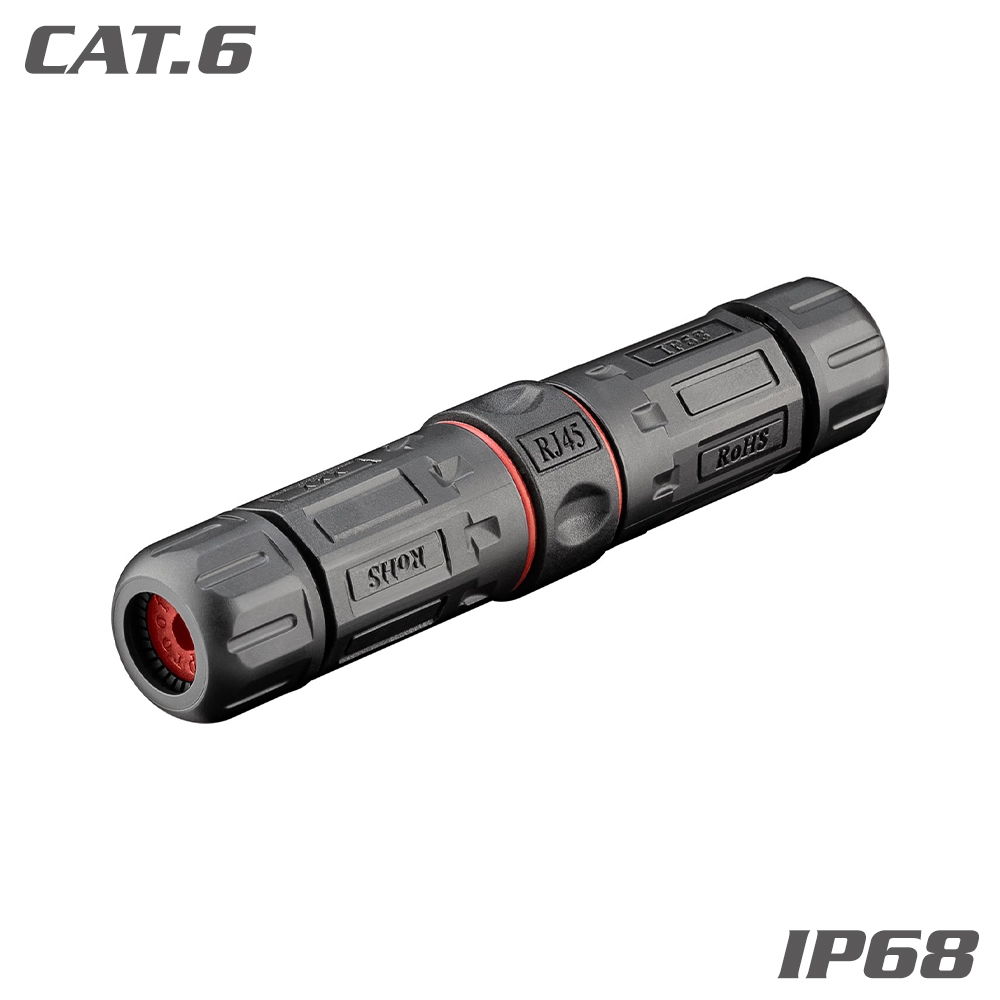

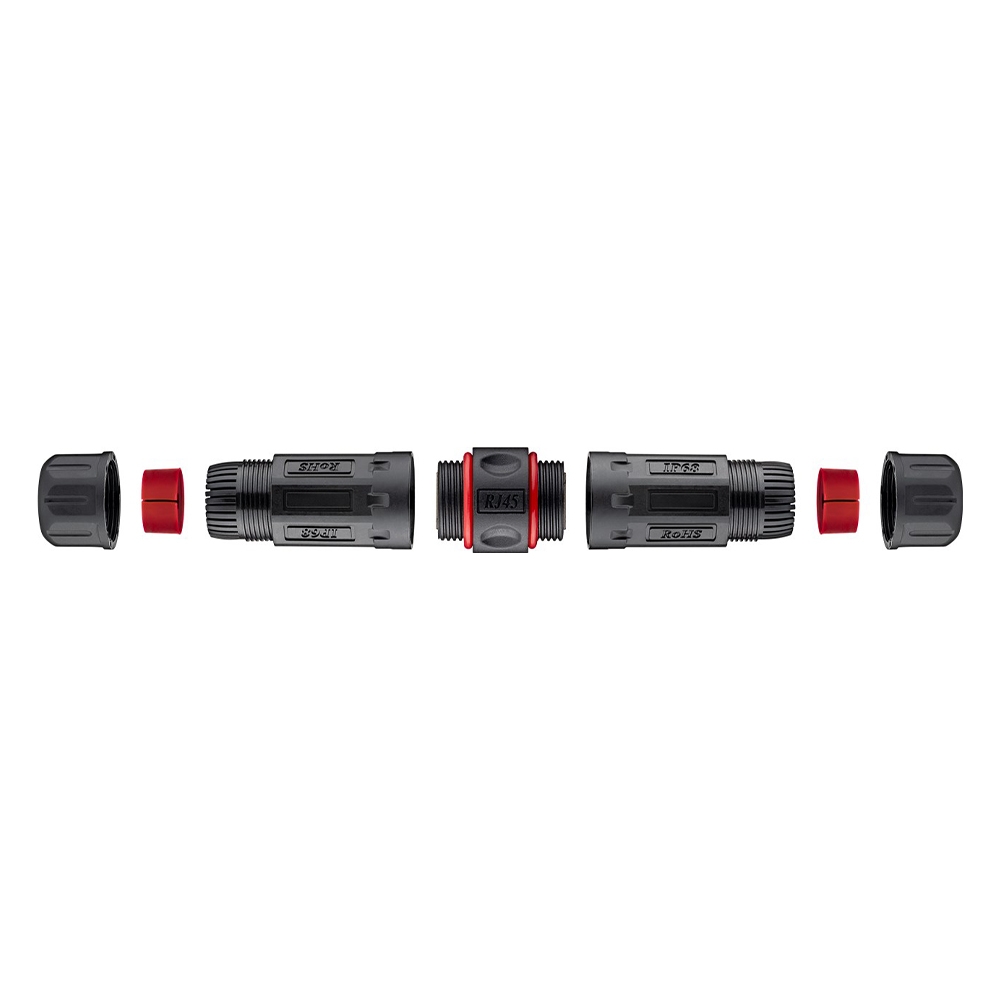

The 79566 Coupler RJ45 Cat.6 Female to Female Outdoor IP68, is a dustproof and waterproof coupler with 2x RJ45 female (8P8C), category CAT 6 Outdoor RJ45 , with an IPxx rating of IP68. This cable connector is designed for 8-wire connection, extension, repair or rerouting of CAT 6 data cables. The major advantage of this connector over CAT connection boxes is its extra slim design, which facilitates and eases the installation, even in hard to reach points, e.g. in cable ducts. Additionally, it provides shielded cable connection (STP) and its cable connector is manufactured for outdoor and industrial applications, offering protection against dirt and moisture (protection class IP68). It features max. data transmission of 250 MHz and it is suitable for terminated patch cables with a cable diameter of 4.0 - 8.0 mm. Also, it supports PoE+ applications (IEEE 802.3at).
Technical features:
- Specification CAT 6 Outdoor
- Protection class: IP68 dustproof and waterproof
- RJ45 Modular Coupler, 2x RJ45 (8P8C) Cat.6 Female to Female
- For cable diameter of 4.0 - 8.0 mm
- PoE and PoE Plus according to IEEE802.3at: Yes
- Shielding: STP
- Outer diameter cable: 5.0 mm - 9.0 mm
- Rated voltage: 125 V, Rated current: 1.5 A
- Contact resistance: 100 mO max.
- Insulation resistance: 1000 MO min. @ 500 V
- Resistance voltage: 750 V RMS, 60 Hz, 1 min
- Bandwidth: 250 MHz
- AWG: -
- Solid cable: -
- Outer diameter cable: -
- Operating temperature: -0°C ~ +70°C
- Storage temperature: -40°C ~ +60°C
- Material: Nylon PA66, PVC 80P (red)
- Contacts: phosphor bronze
- Markings: WEEE, CE
- Color: Black
- Dimensions O-ring: 22 x 17 x 2.5 mm
- Dimensions: 120.00 (L), 28,00 (D) mm
Packaging:
- Per 1 piece
