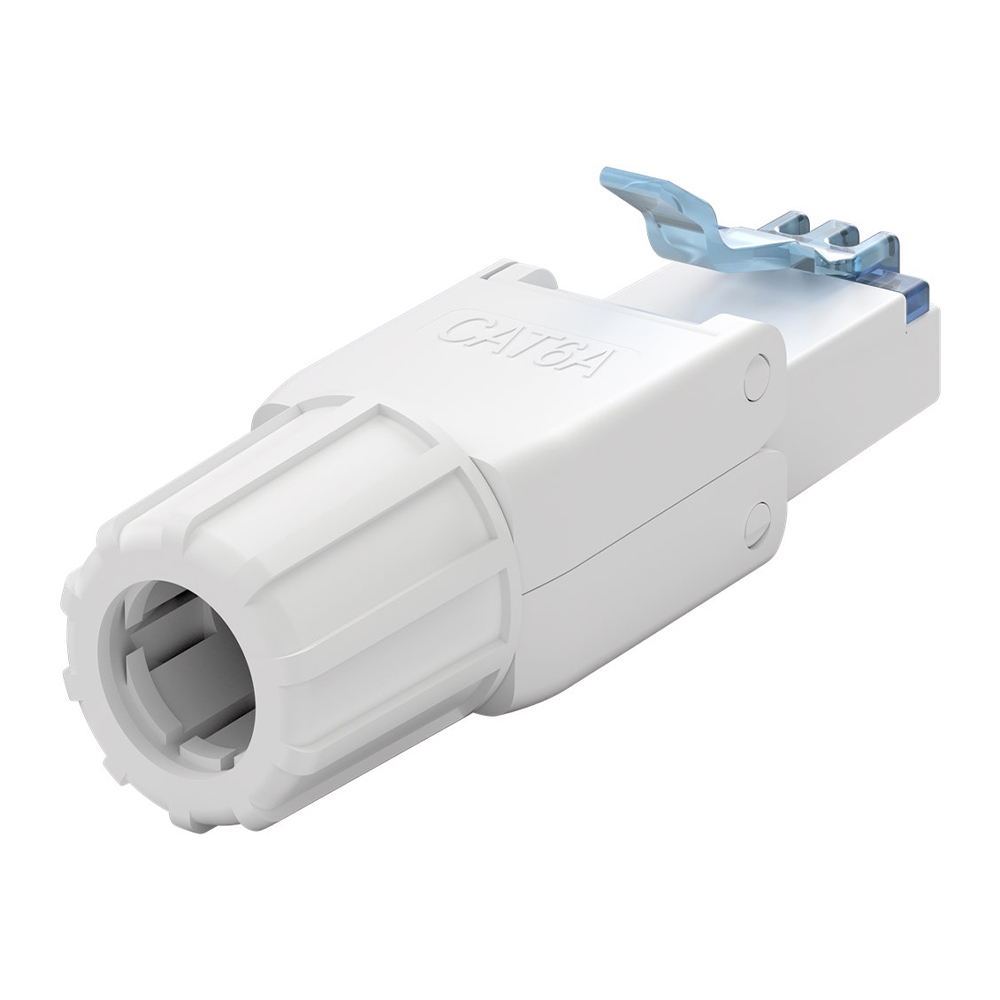

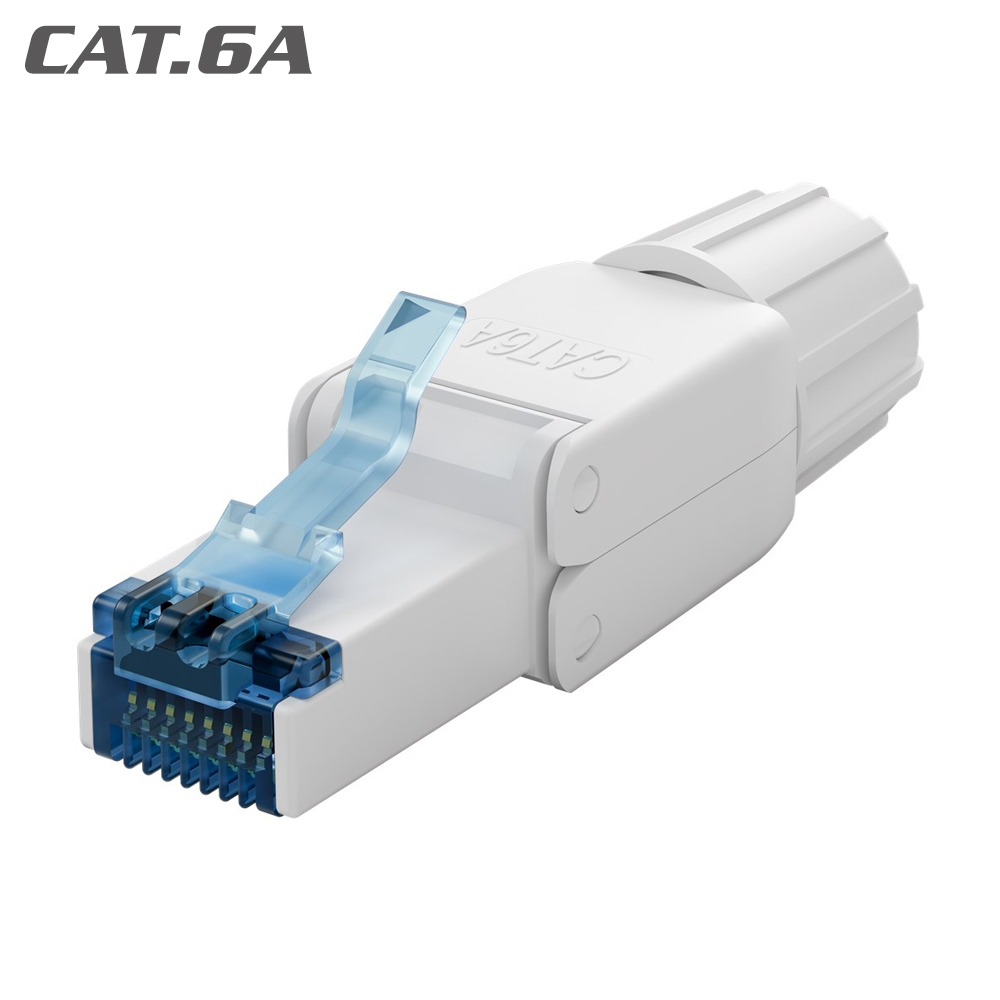

The 65941 Connector RJ45 UTP Cat.6A Male tool-free, is a CAT 6? Unshielded RJ45 male (8P8C) Connector for Field Assembly. It is suitable for 5.0-8.5 mm cable diameter, with solid conductors (AWG 22/1 - 24/1) and stranded conductors (AWG 22/7 - 24/7). The 65941 provides screw cap and features tool-free IDC mounting with its handy folding mechanism. The CAT 6? connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE), according to IEEE802.3bt as well as 10GBase-T (downward compatible), while its RJ45 connector is TIA 568A/B colour-code.

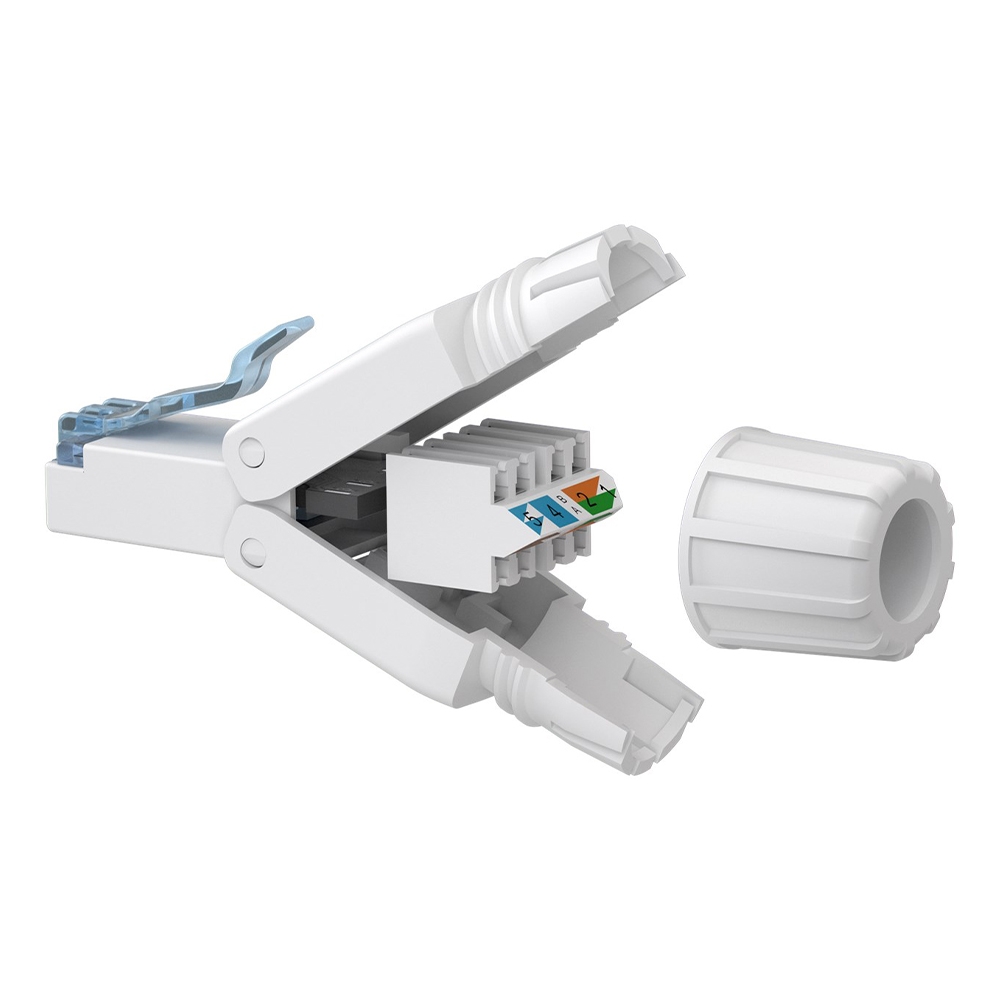

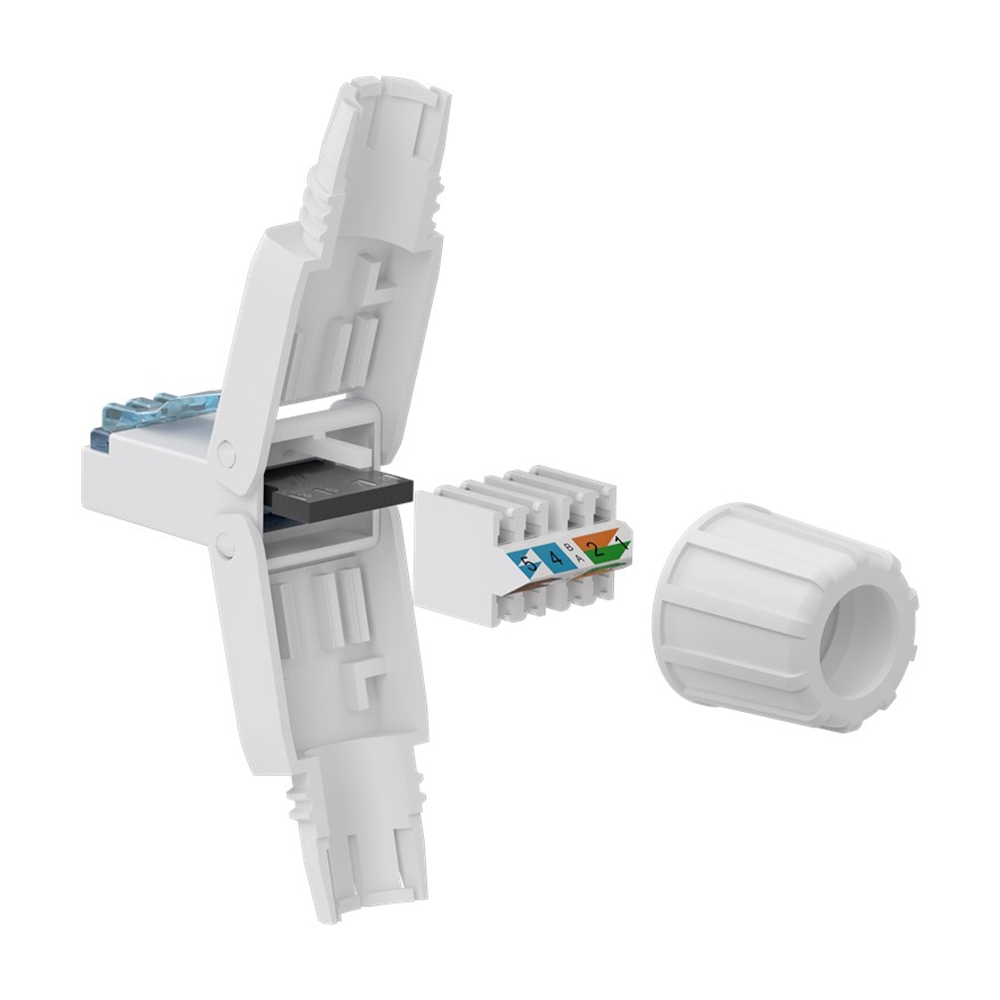

Thanks to IDC assembly technology, no additional tools are required. Just place the individual wires on the colour-coded contacts and fix them in place by simply pressing the connector housing together.
Technical features:
- Specification CAT 6? UTP RJ45 Connector, tool-free IDC mounting
- Shielding: UTP
- Isolation: 250 MO 100V
- Contacts: gold-plated 3µm, 8-pin
- Bandwidth: 500 MHz
- AWG 22-24
- Solid cable: 1/22 AWG (0.65 mm) - 1/24 AWG (0.5 mm)
- Inner diameter: O 1.0 mm - 1.5 mm
- Stranded cable: 7/22 AWG - 7/24 AWG
- Inner diameter: O 1.0 mm - 1.5 mm
- Outer diameter cable: O 5.0 mm - 8.5 mm
- Plug strength: < 30 N
- Contact resistance: 20 m O
- Resistance voltage: 1000 V 700 V RMS 60 Hz, 1 min.
- Operating temperature: -10°C ~ +70°C
- Storage temperature: -40°C ~ +60°C
- Housing material: Plastic
- Dimensions: 48.8 (L) x 14.4 (W) mm
- Color: White, Blue
Packaging:
- Per 1 piece
