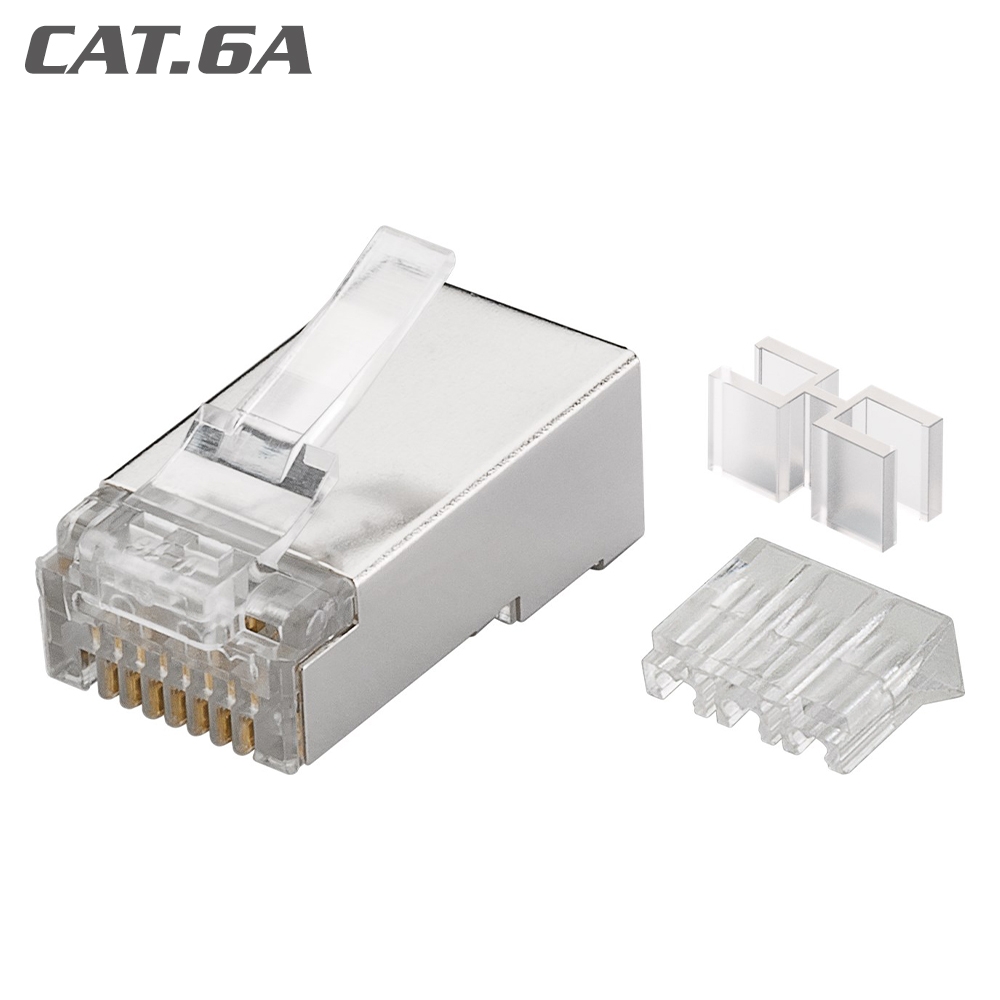

The 72502 Connector RJ45 STP Cat.6A Male, is a RJ45 Plug, CAT 6? STP with 6+2 pin assignment (SHIELDED), for round cable. It is used as a terminal connection for network cables, when connector shielding is needed and it has an Ethernet plug with latch lug and a sturdy plastic+metallic housing. It is suitable for flexible stranded and rigid solid inner conductors (AWG 23 - AWG 26) and it is a CAT 6? plug with 50 microns gold-plated contacts for a perfect transmission of electrical or optical signals. Shielded RJ45 plug with 6+2 pin assignment
Technical features:
- Specification RJ45 male (8P8C), CAT 6?, STP
- Shielding: Yes, CAT 6? STP
- Isolation: 1000 MO min
- Contacts: gold-plated tips 50µm, 6+2 Pin
- Bandwidth: 500 MHz
- AWG 26-23
- Housing material: Metal
- Color: Silver
Packaging:
- Sachets per 10 pieces
