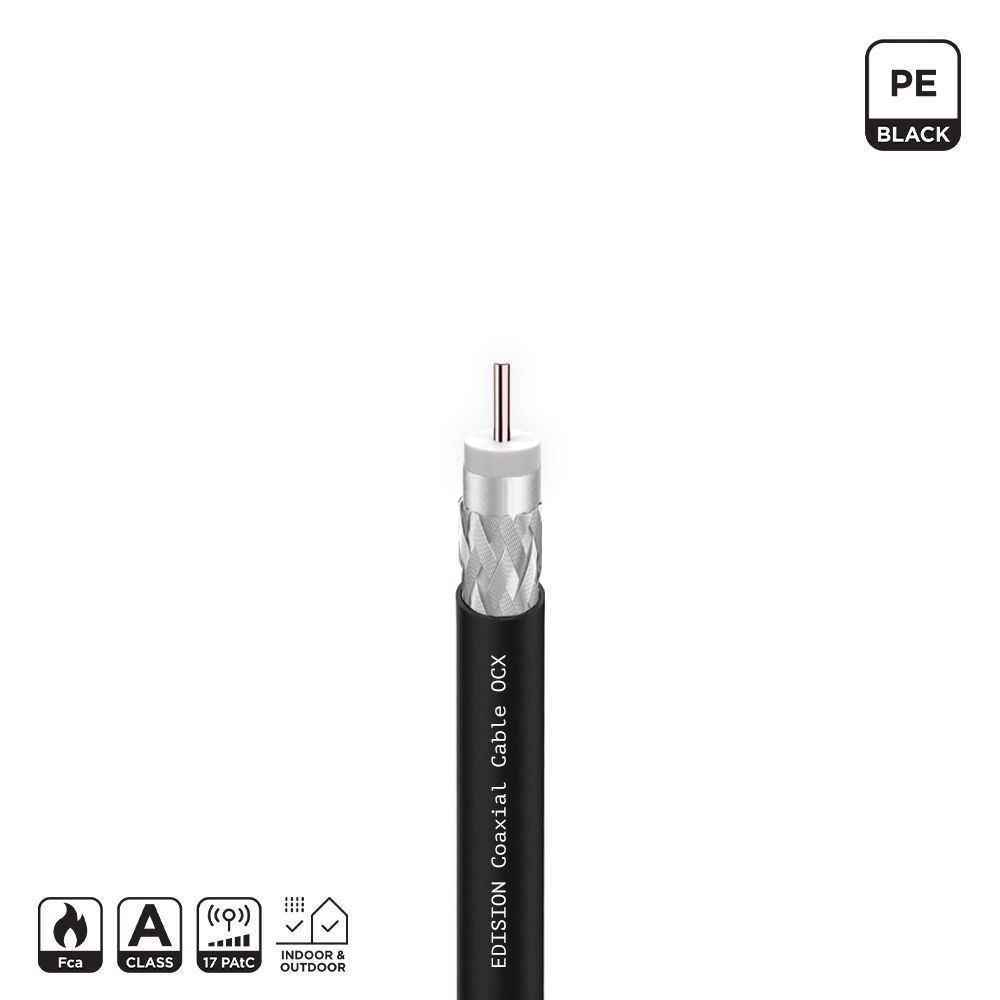

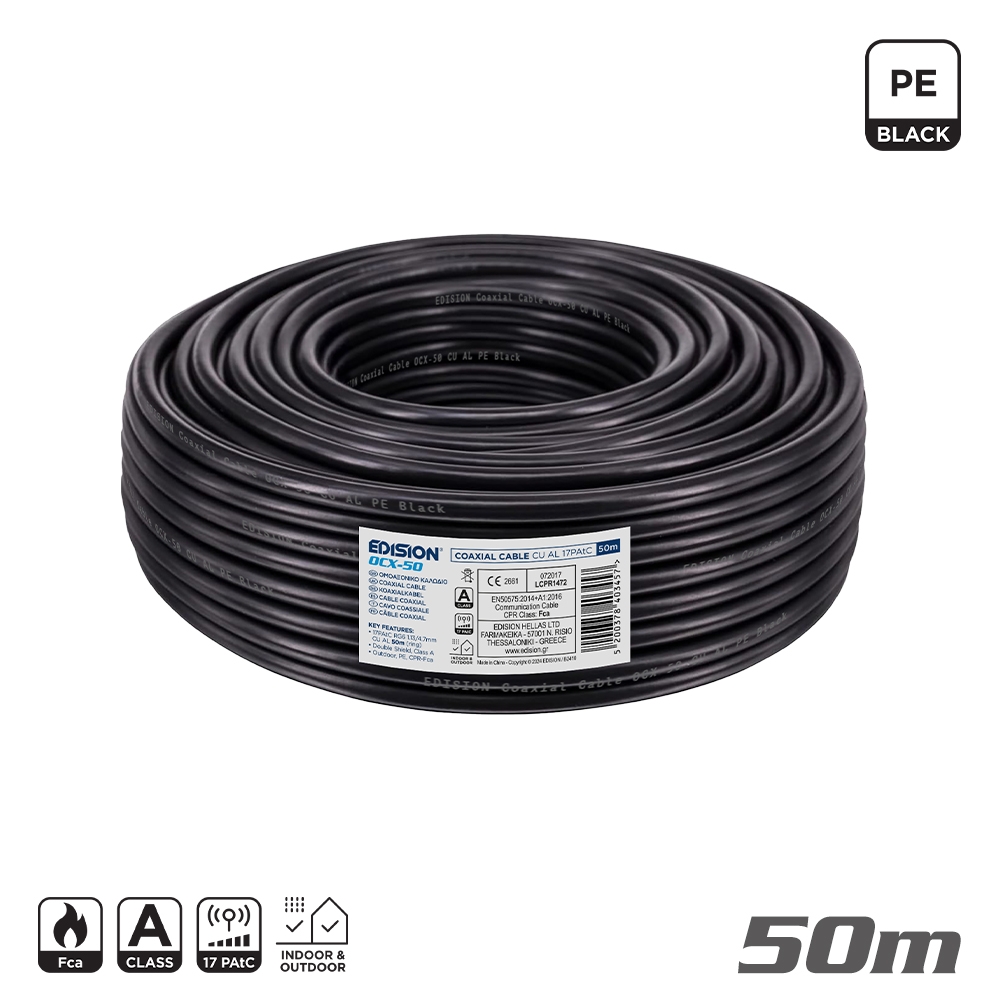

EDISION COAXIAL Cable OCX-50 CU AL Fca PE Black 50m. Outdoor and Indoor RG6 coaxial cable, in a 50meter coil, for Digital Terrestrial, Cable and Satellite TV signal distribution. Also suitable for CCTV camera signal. It has double shielding, reinforced inner conductor, Class A, with excellent specifications for its class. Compatible with all 7mm TV and F plugs.
Technical features:
- Type: Coaxial Cable RG-6, double shielded, 17PAtC Outdoor and Indoor OCX-50
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class A
- CPR Class: Fca
- Standards: EN 55075
- Inner Conductor: Diameter 1,13 ± 0,05 mm / Material: Copper (CU)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 16x8x0,12 mm with coverage 77%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PE black
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >85 dB (typ.130dB)
- Return Losses 5-862 MHz: >22 dB / 862-2150 MHz: >20 dB
Attenuation dB per 1 meter:
- 5 MHz / 0,02 dB
- 30 MHz / 0,03 dB
- 50 MHz / 0,04 dB
- 200 MHz / 0,07 dB
- 400 MHz / 0,11 dB
- 500 MHz / 0,12 dB
- 800 MHz / 0,16 dB
- 860 MHz / 0,17 dB
- 1000 MHz / 0,18 dB
- 1350 MHz / 0,21 dB
- 1750 MHz / 0,25 dB
- 2050 MHz / 0,27 dB
- 2150 MHz / 0,28 dB
General:
- Environmental Operating Temperature: -40°C ... +80°C
- Application: Outdoor and Indoor
- Length: 50m (marked per 1 meter)
- Weight: 1,73 kg
- Color: Black
- Packing: Ring 50m
- Packing Quantity: 8 pcs x 50m
