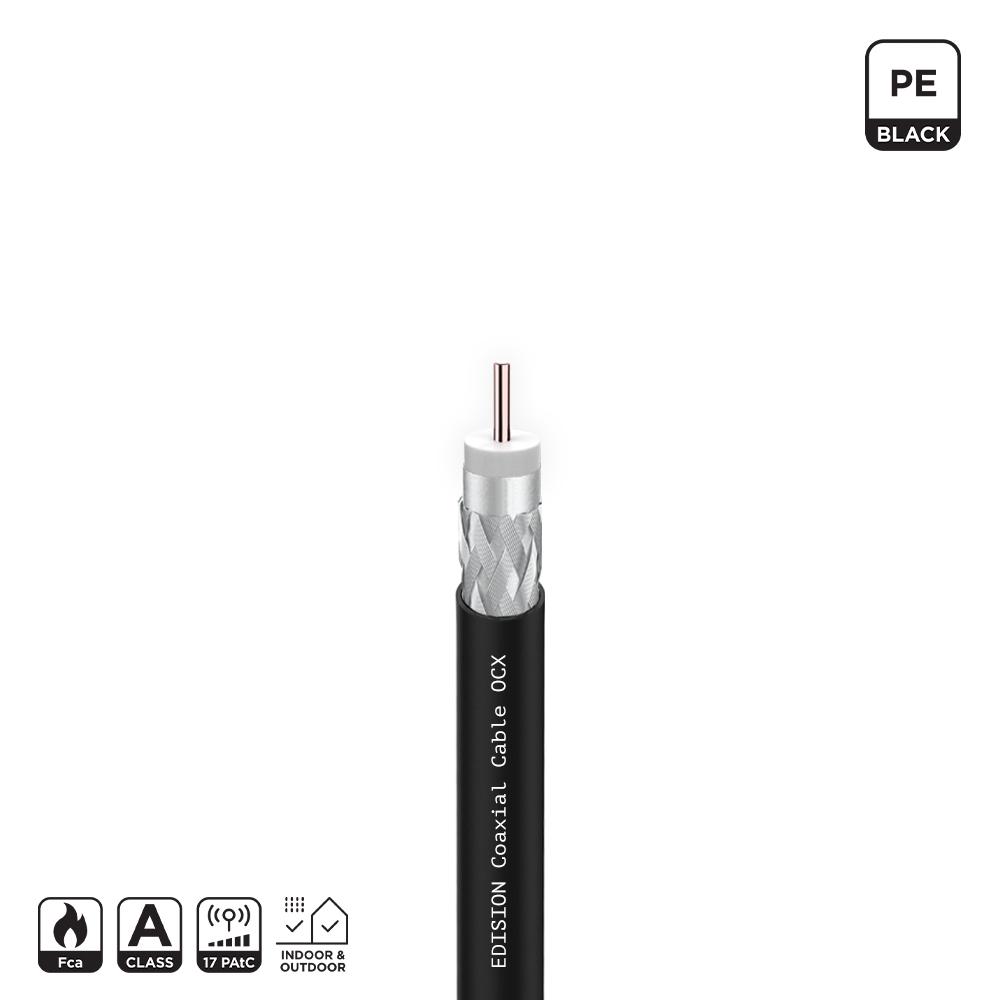

EDISION COAXIAL Cable OCX-100 CU AL Fca PE Black 100m. Outdoor and Indoor RG6 coaxial cable, in a 100meter plastic reel, for Digital Terrestrial, Cable and Satellite TV signal distribution. Also suitable for CCTV camera signal. Its inner conductor 100% copper (CU) giving it an enhanced mechanical behavior. Its PE outer sheath is double shielded Class A with excellent specifications for its class, providing excellent conductivity and low attenuation. The PE outer sheath is characterized watertight, making it ideal for outdoor use. Compatible with all 7mm TV and F plugs.
Technical features:
- Type: Coaxial Cable RG-6, double shielded, 17PAtC Outdoor and Indoor OCX-100
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class A
- CPR Class: Fca
- Standards: EN 55075
- Inner Conductor: Diameter 1,13 ± 0,05 mm / Material: Copper (CU)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 16x8x0,12 mm with coverage 77%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PE black
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >85 dB (typ.130dB)
- Return Losses 5-862 MHz: >22 dB / 862-2150 MHz: >20 dB
Attenuation dB per 1 meter:
- 5 MHz / 0,02 dB
- 30 MHz / 0,03 dB
- 50 MHz / 0,04 dB
- 200 MHz / 0,07 dB
- 400 MHz / 0,11 dB
- 500 MHz / 0,12 dB
- 800 MHz / 0,16 dB
- 860 MHz / 0,17 dB
- 1000 MHz / 0,18 dB
- 1350 MHz / 0,21 dB
- 1750 MHz / 0,25 dB
- 2050 MHz / 0,27 dB
- 2150 MHz / 0,28 dB
General:
- Environmental Operating Temperature: -40°C ... +80°C
- Application: Outdoor and Indoor
- Length: 100m (marked per 1 meter)
- Weight: 3,83 kg
- Color: Black
- Packing: Plastic Reel 100m, blue color with cable consumption indicator
- Packing Quantity: 4 pcs x 100m
