Product description:
Server 718001 receives up to 4 different FTA transponders (standards DVBS or DVBS2: QPSK or 8PSK) and transmits them through the available network. QUAD, QUATTRO, UNIcable, Single (VL input) or Twin (VL and VH) LNBs are compatible with our server. Up to 4 receivers can be connected to the SAT-IP server. These receivers could be either Wifi or Ethernet wired. We will watch our FTA* transponders on those receivers (Tablets, PCs, laptops, smartphones, SAT-IP receiver 718010). (* a paid software might be needed).
Technical Features:
Hardware
- RAM (DDR3) MB / MHz 512 / 1066
- Memory NOR & NAND Flash MB 1 / 128

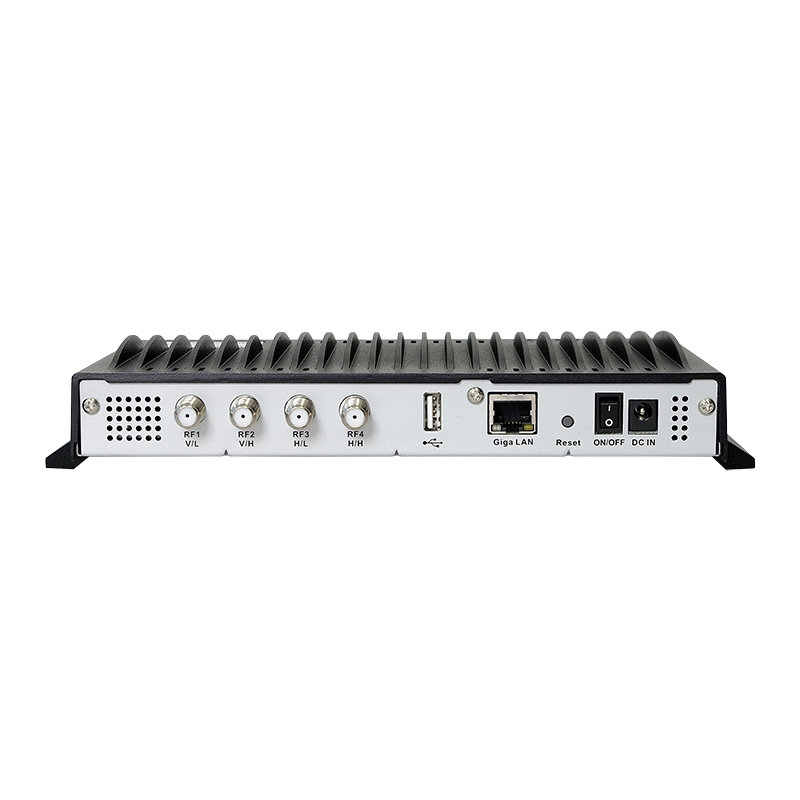

Connectors
- DVB S/S2 Connector: 4
- USB 2.0: 1
- RJ45 100/1000 Mb Ethernet: 1
- Reset: 1
- ON/OFF switch: 1

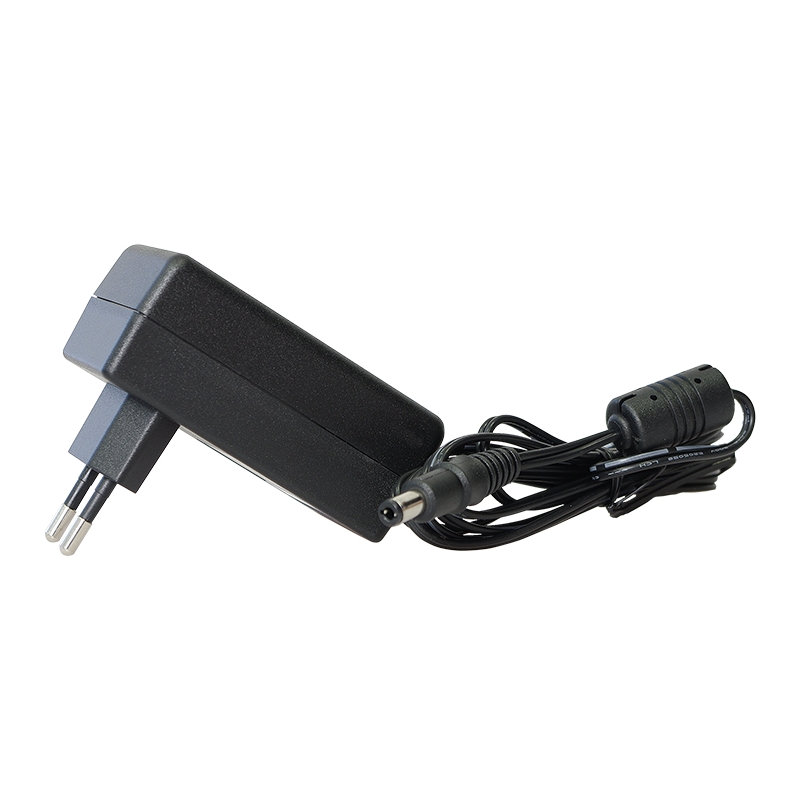

- DC IN Power supply: 1
Software
- Control protocols:HTTP, RTSP & RTCP, UPnP
- Streaming: Unicast HTTP 1.0 / 1.1, Multicast UDP / RTP
- Status LED: Green (ON) / OFF,
- Streaming LED: Blue (network connection available), Blinking blue (content will be streamed), OFF (no connection)
General
- Dimensions: mm 247 x 138 x 43
- Weight: g 725
- Working temperature: ΊC 0 - 40
