237540 Overlight Optical RX QUATTRO + TDT
Product Code:
12-45-0333
  • Manufacturer:
    TELEVES
  • Barcode:
    8424450246689
  • Pieces per package:
    1
  • Net weight:
    0.52 kg
  • Gross weight:
    0.65 kg
  • Uploaded on:
    08-04-2022
Ρequired accessories

The 237540 Overlight Optical RX is a complete optical Wideband satellite and terrestrial receiver that captures the TV optical signal on a single fiber (1100...1650nm) and restores the original RF terrestrial and satellite TV signals, providing 4 RF outputs with Quattro mode: each one of the four SAT polarities and Terrestrial. Thanks to its optimized electronics, it preserves the signal quality throughout the process. Furthermore, it is fully indicated for use in GPON installations.
This product is certified with the European IRS Certification Scheme mark, representing that it has passed the relevant test as set out in the latest EICS test specification, available from the DTG or CAI.

Technical features:
-Input: SC/APC optical input connector
- For Single Mode Fiber Optic cable
- Output: F-type RF connectors VL , HL, VH, HH + TERR
- Very compact in dimensions and weight
- Compatible with GPON deployments
- High-screening Zamak chassis
- Can be wall-mounted using screws
- LED indicator for Optical power INPUT signal status
- Switch for Power input selection (JACK for PSU 732802, OUT for Polarities from Multiswitch input connection)
- Compatible with Televes NevoSwitch series, and with other IRS systems

TERRESTRIAL
- Frequency range MHz 87 ... 694
- Output level dBμV 79 ... 83
- Input impedance Ohm 75

QUATTRO (VL , HL, VH, HH)
- Frequency range MHz 950 ... 2150
- Output level dBμV 64 ... 71
- Output impedance Ohm 75

OPTICAL
- Wavelenght nm 1200 ... 1600
- Input Optical power dBm -13 ... -6
- Optical connector SC/APC
- LED indicator for Optical power INPUT signal status [Red (too much): > -6dBm, Green (correct): -6 ... -13dBm, Orange (little/marginal): < -13dBm]

GENERAL
- Switch for Power input selection (JACK for PSU 732802, OUT for Polarities from Multiswitch input connection)
- Max. current consumption mA 750 @12V
- Working temperature C -5+45
- Dimensions mm 137 x 120 x 30

Related Products

  • 2335 T.0X Optical RX 87-2150 MHz w/PSU 220Vac
    2335 T.0X Optical RX 87-2150 MHz w/PSU 220Vac
    More
  • 2311 Optical RX 87-2150MHz 1200-1600nm
    2311 Optical RX 87-2150MHz 1200-1600nm
    More
  • 2365 Attenuator 10dB
    2365 Attenuator 10dB
    More
  • 233306 T.0X Optical TX 54-2150 MHz 1310nm 6dBm
    233306 T.0X Optical TX 54-2150 MHz 1310nm 6dBm
    More
  • 732802 NEVOSWITCH PSU 12V-2,8A
    732802 NEVOSWITCH PSU 12V-2,8A
    More
  • 232105 Fusion Splicer Kit
    232105 Fusion Splicer Kit
    More
  • 232602 SC/APC Pigtail Patch cord 2m
    232602 SC/APC Pigtail Patch cord 2m
    More
  • 593602 H30 CRYSTAL DVB-S/S2 + DVB-T/T2 + FO
    593602 H30 CRYSTAL DVB-S/S2 + DVB-T/T2 + FO
    More

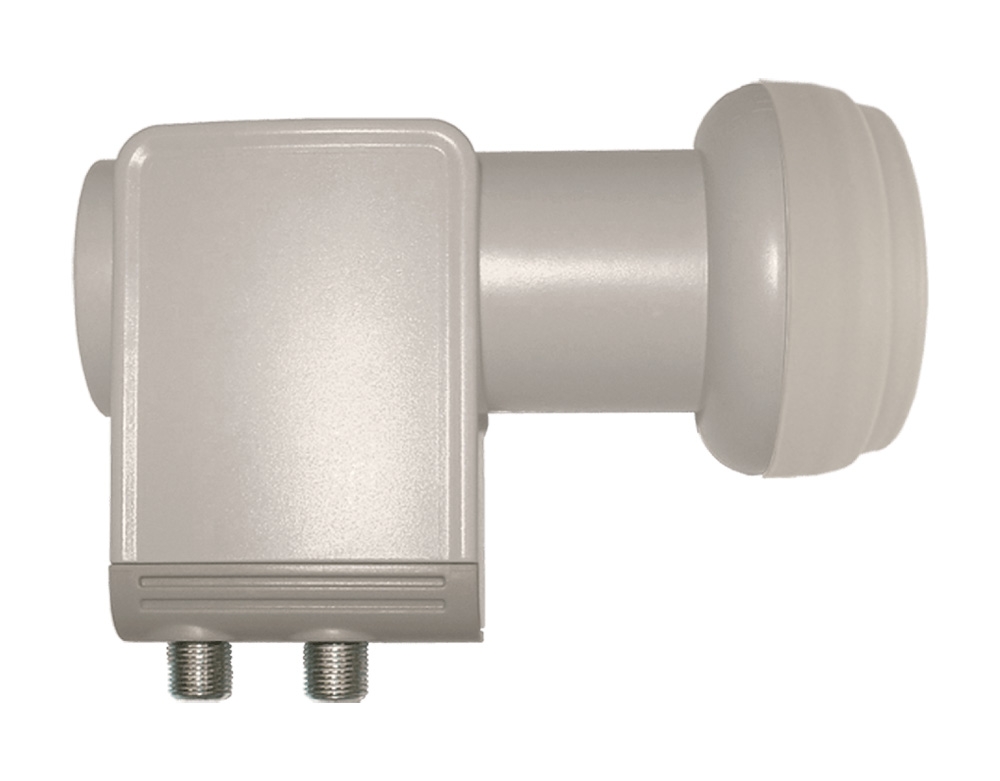

  • 747402 Overlight Wideband LNB V/H 2out
