TELEVES SMARTKOM AMPLIFIERS
19/01/2023

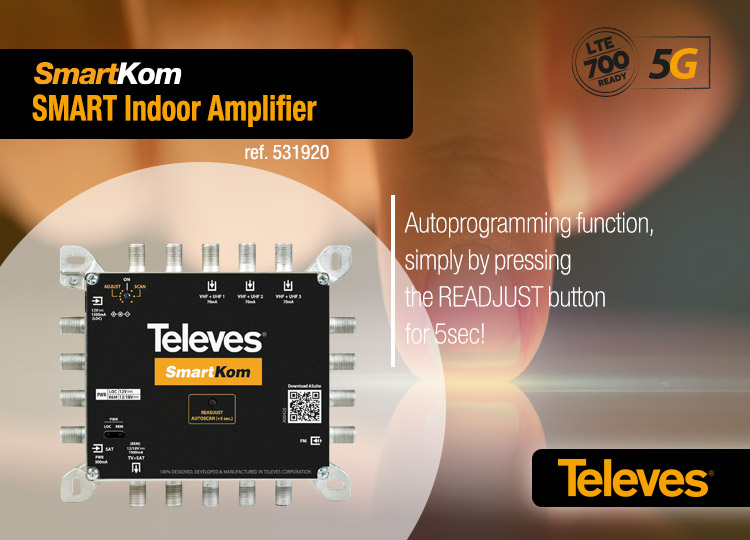

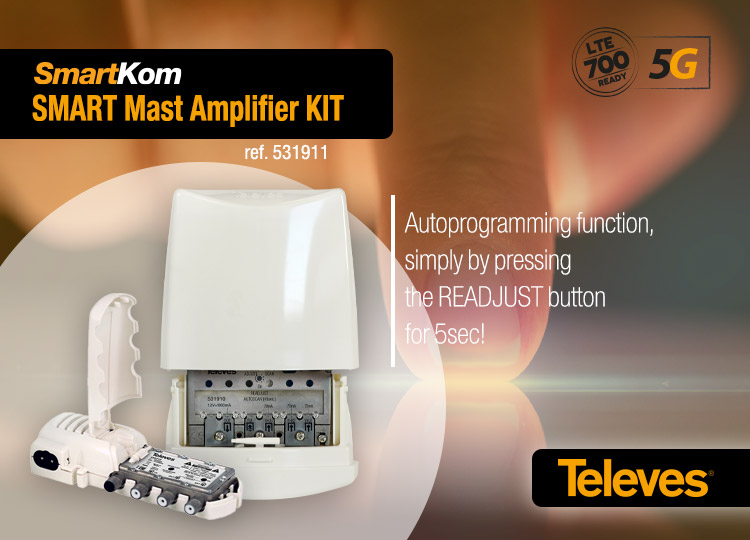

TELEVES SmartKom amplifiers Outdoor (531911) and Indoor (531920) are intended as a home amplifier with digital channel filtering for systems with a small number of outlets. This unit has 3 VHF+UHF inputs that allow for up to 32 filters in total and also FM and SATELLITE mixing inputs. Additionally, it has automatic/programmable powering, 5G LTE filtering and short-circuit protection. Each of the 32 filters has high selectivity which allows the balancing of adjacent channels. It has individual AGC and it can be programmed to filter any VHF channel (5 to 12) and UHF channel (21 to 48). Channels are automatically balanced according to the output level. It can be self-programmed by a long press (5+ sec.) of the READJUST button. This function allows channel scanning through the connected inputs. After that, levels need to be re-adjusted. When the scanning process is started, powering through input is enabled. The green LED will flash slowly to indicate that DVB-T/T2 channels are being scanned through the connected inputs and that the unit is being configured according to the channels that have been already found. Once the scanning is complete, the LED will flash faster to confirm the unit adjustment. A steady light indicates that the process is completed. Channels already programmed/found can be also adjusted by the unit. If such was the case, a short press of the button (<3 sec). In order to program the amplifier, by using the ASuite app, you can configure the following parameters: channels, output level, manual level adjustment and enabling/disabling power supply to inputs.
