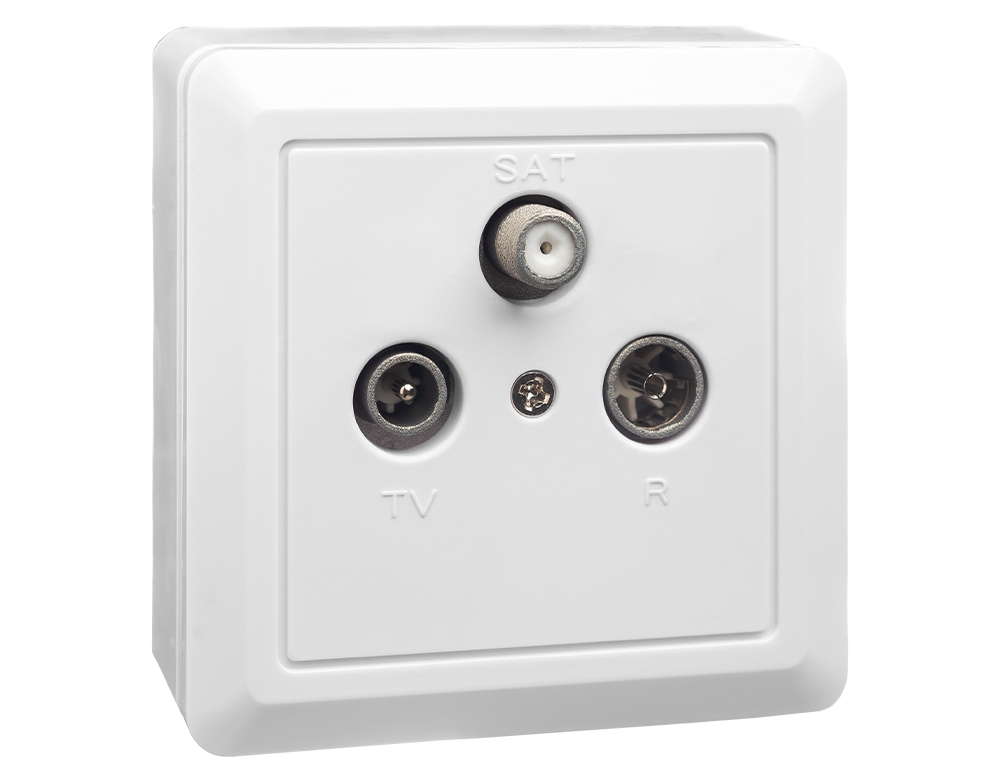

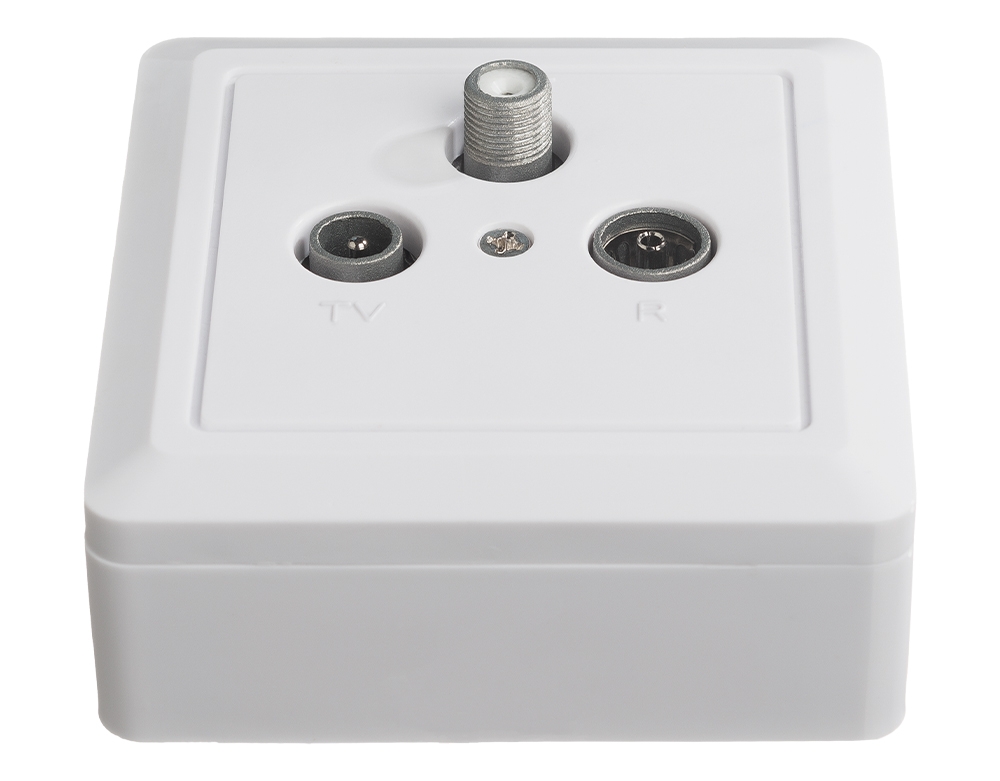

EDISION TVΚ-801, is a complete KIT that consists of a Triple TV Terminal outlet for Satellite, Unicable, Terrestrial, Cable and Radio signal, plus its Face Plate and Wall mount base. The TV outlet is made of cast, special metal alloy combined with excellent quality electronic and mechanical parts. It provides Satellite and Terrestrial/Cable TV and radio individual signal delivery and termination to one TV point, according to the technician's choice. It has a grounding point, selectable support points in the built-in or wall-mounted box, as well as 2 anchor points for a built-in box. The special anchoring point for the coaxial cables with the signal, has a special slot for securing them as well as a cast metal cover from the same alloy as the socket, for secure fixing and also for electromagnetic shielding of the connection. The 2 included accessories (Face Plate and Wall mount base), are made from special synthetic material and all togheter, provide an overall solution at the TV installation point.
Technical features:

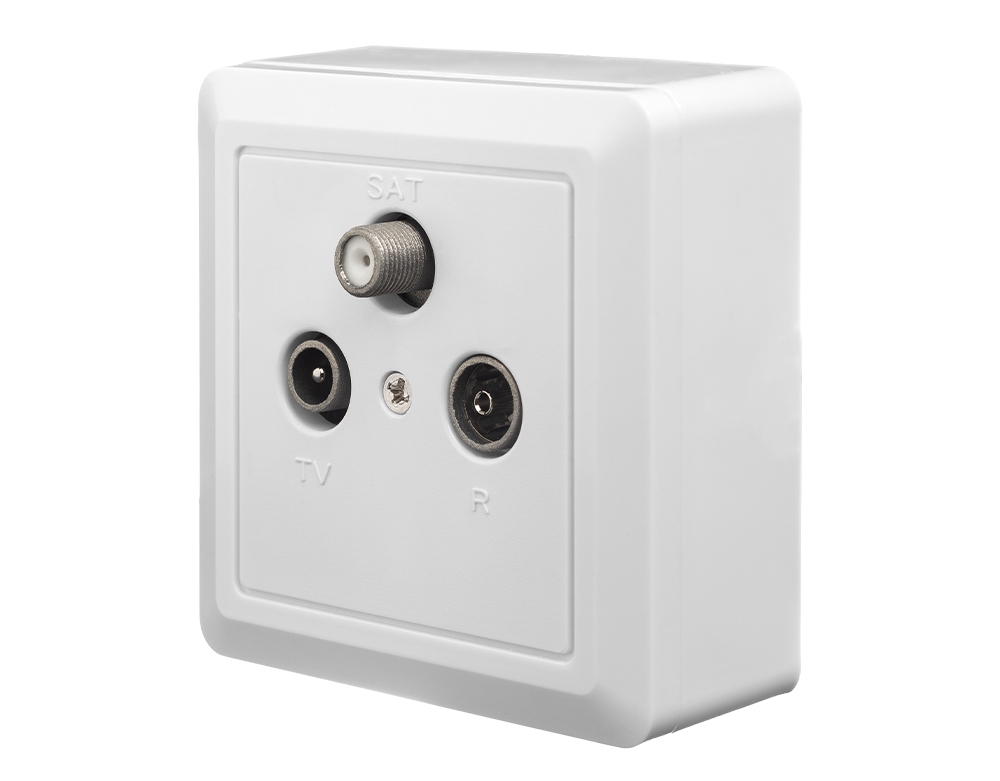

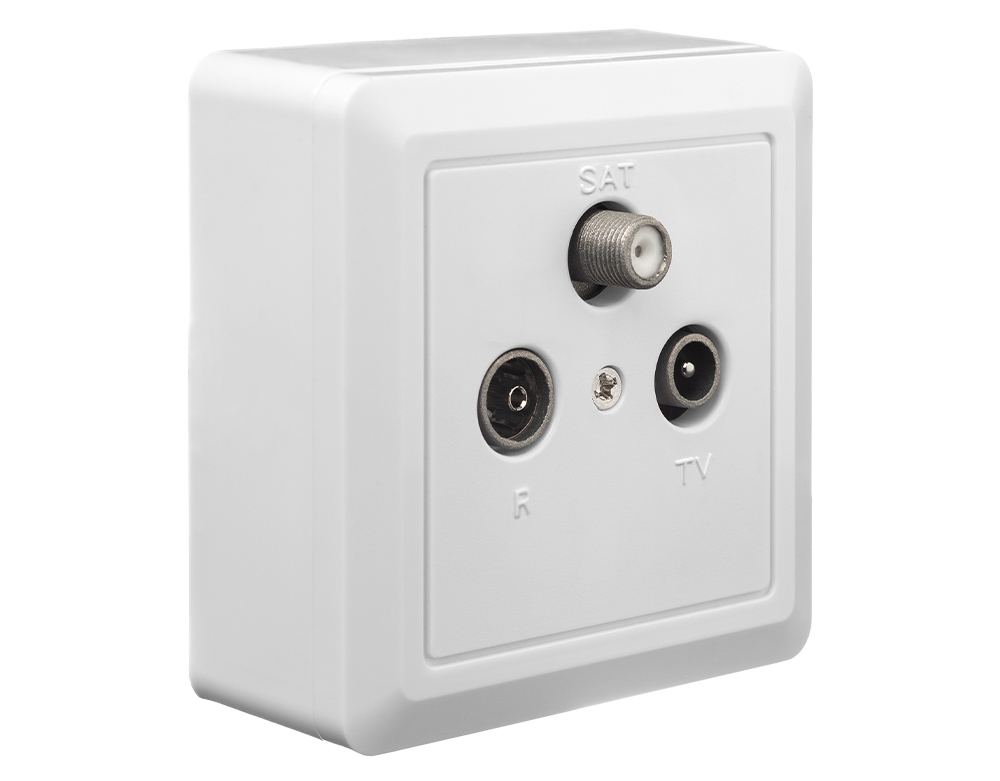

- Complete KIT: Triple Terminal Outlet TV-R-SAT with face plate & wall frame
- TV Terminal Outlet for Satellite, Unicable, Terrestrial, Cable and Radio signal
- Type: Triple End Outlet 3-Hole TV-R-SAT
- Outputs: 3 for connection to TV, RADIO & SAT
- Suitable for: MATV Installations, DVB-T, DVB-Τ2, DVB-C, RADIO, DVB-S, DVB-S2, Unicable
- Impedance: 75 Ohm
- Isolation: 30 dB
- Connectors TV: IEC Male. 9,5mm / Radio: IEC Female 9,5mm / SAT: F-type female
- DC pass: YES, at SAT 24Vdc up to 500mA maximum
- Dimensions (W x H x D): 68x68x35 mm
- Face plate: includes FPO-300

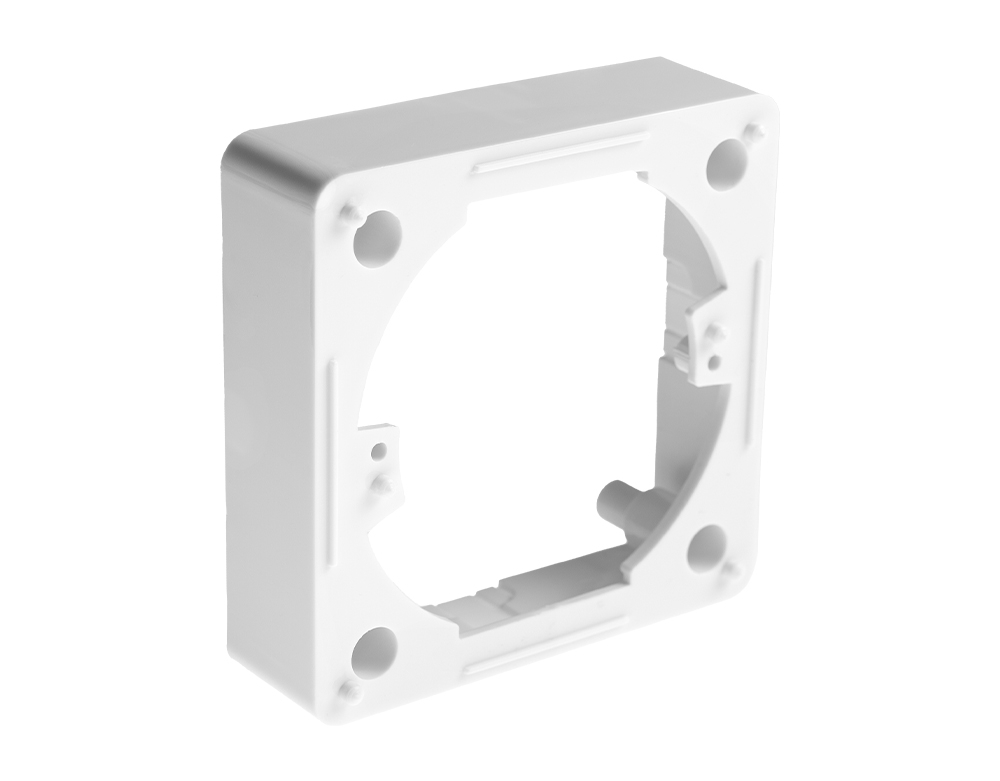

- Wall frame: includes WFO-900
- Packing: High Quality colored giftbox with hanging port
Frequency Range:
- TV: 5-65/125-862 MHz
- Radio: 88-108 Mhz
- SAT: 950-2400 Mhz
Insertion loss:
- IN-OUT: -
- IN-TV: <2,5 dB
- IN-RADIO: <2,5 dB
- IN-SAT: <3 dB
Return Loss:
- IN: 8 dB
- OUT: -
- TV: 8 dB
- RADIO: 8 dB
- SAT: 7 dB
Package includes:

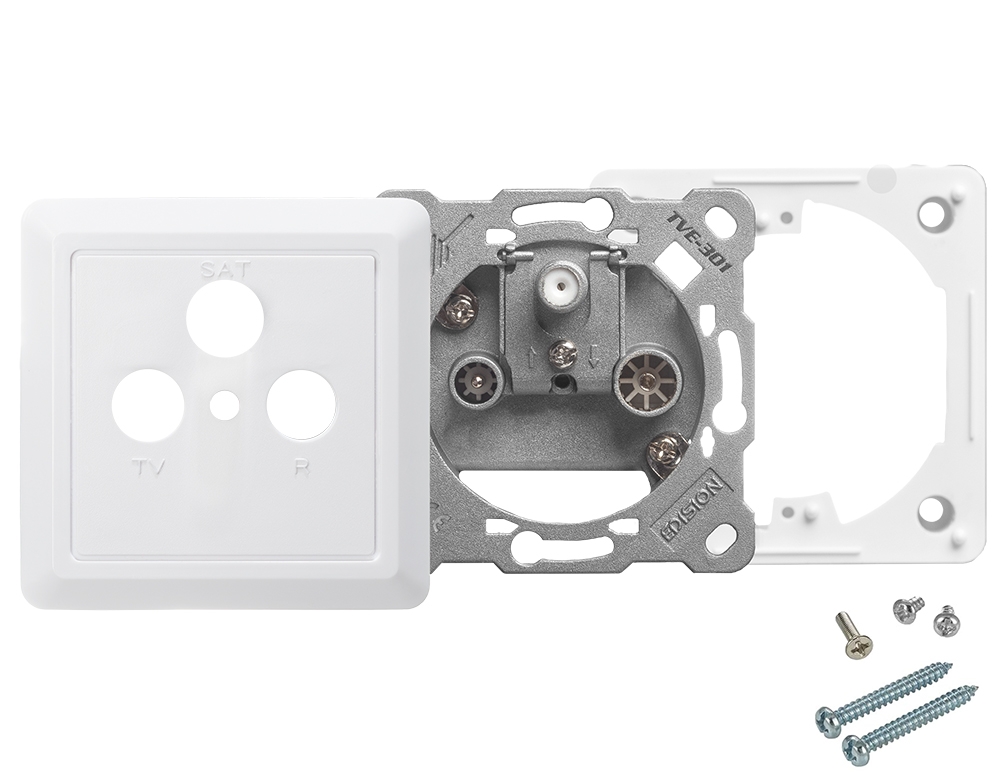

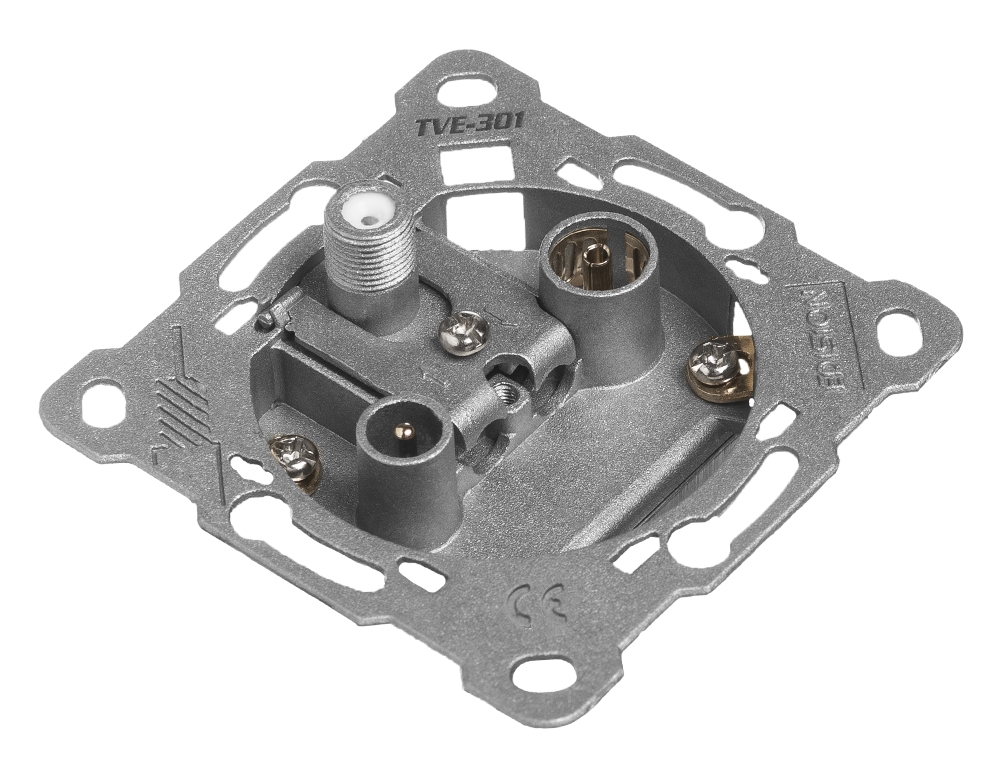

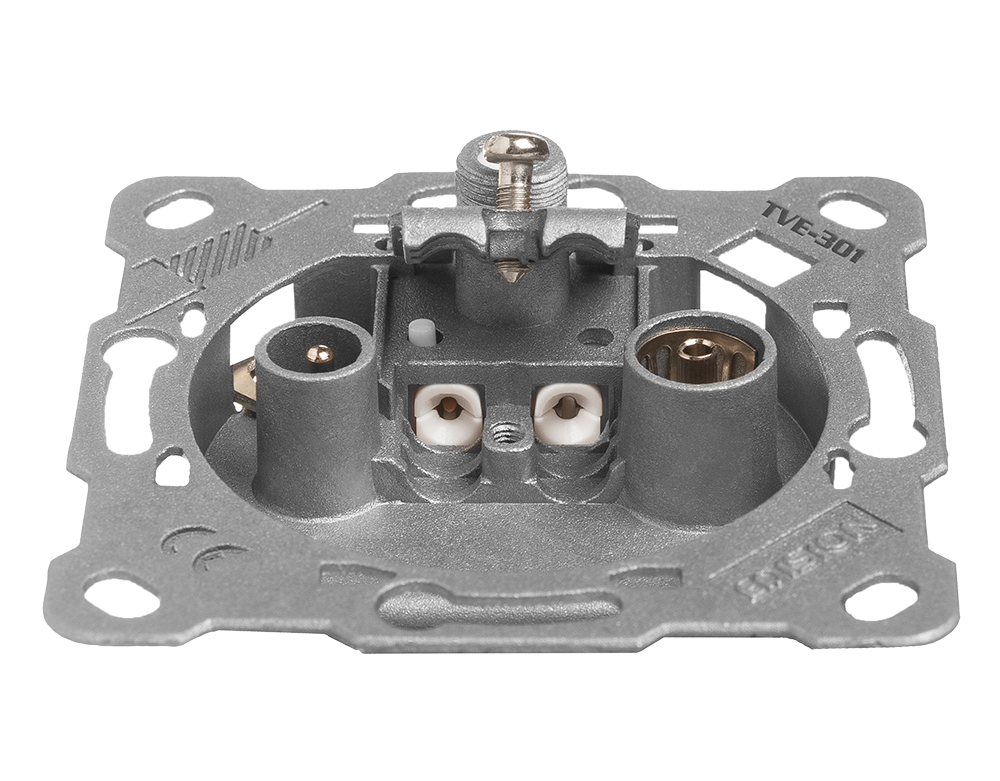

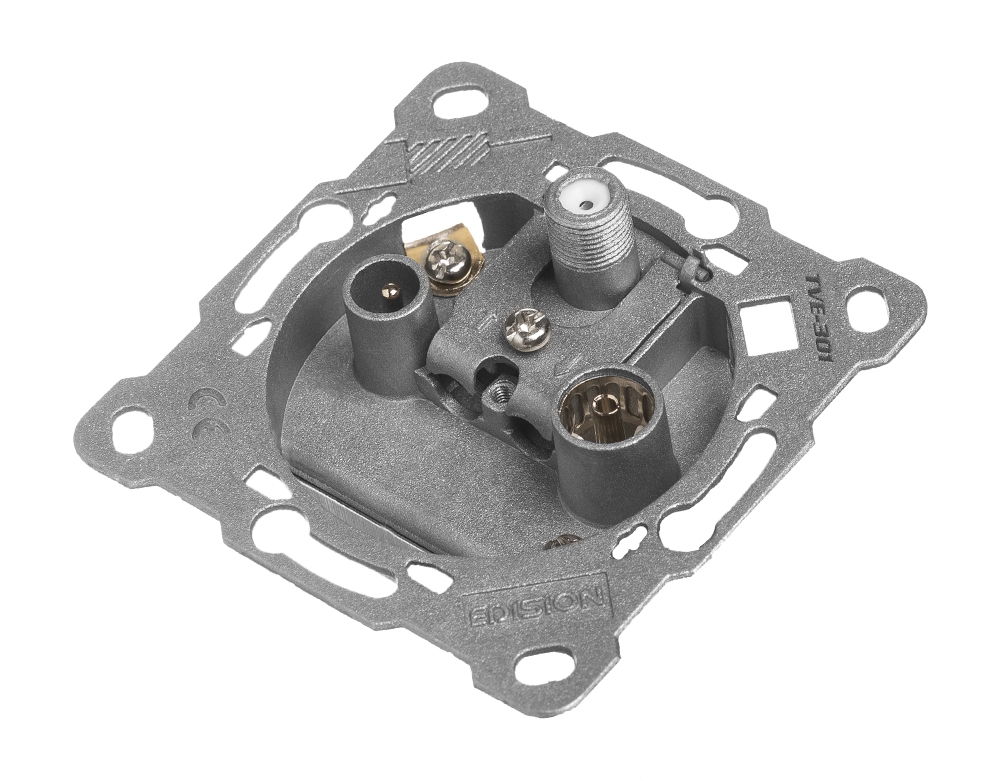

- End Outlet TV-R-SAT 3-HOLE TVE-301

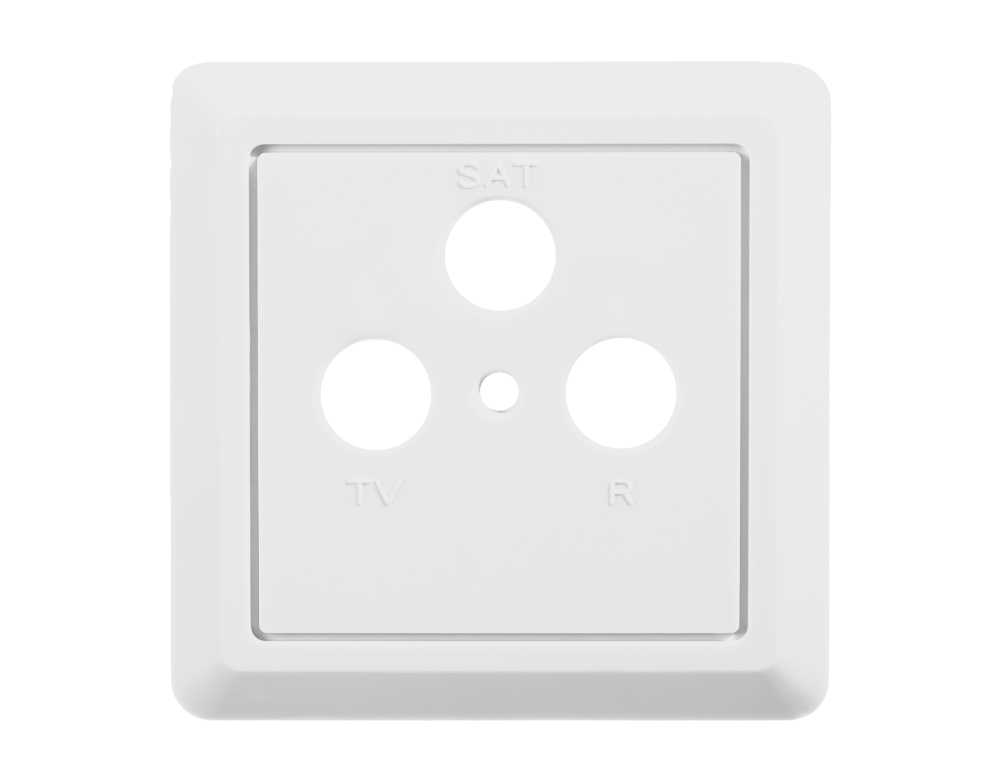

- FPO-300 FACE PLATE 3-HOLE TV-R-SAT
- WFO-900 WALL FRAME UNIVERSAL
- Mounting screws
- Manual GR/EN/DE/ES/IT/FR
