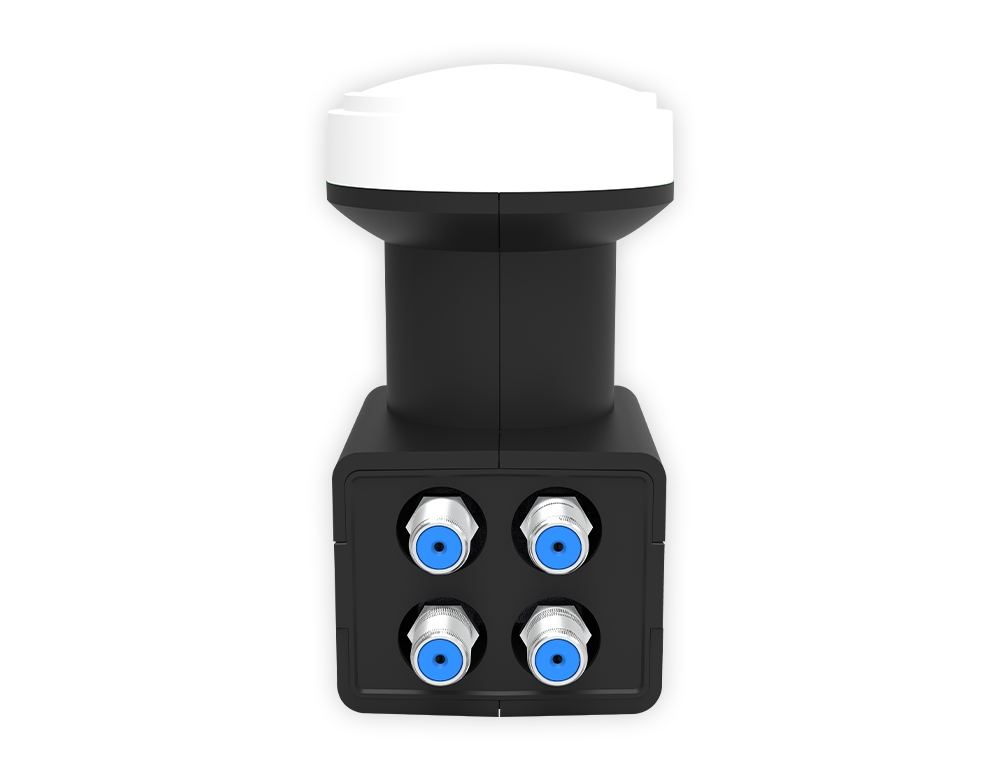

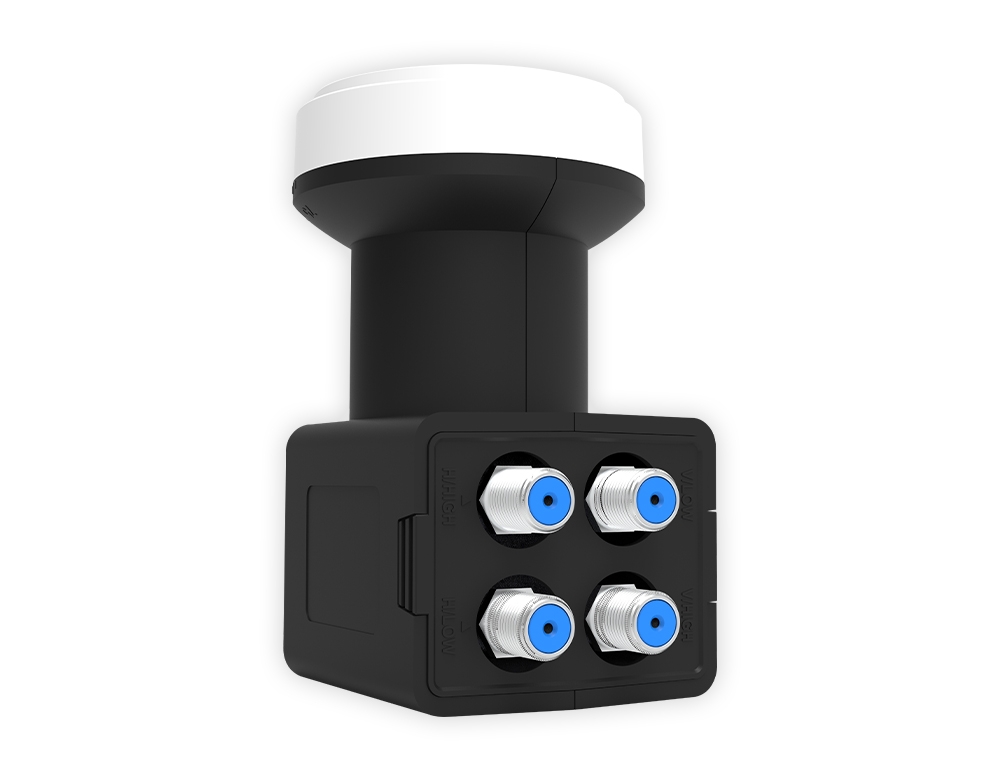

LNB GT-QTL2 LNB QUATTRO. For connecting 1 satellite exclusively to Multiswitch.
Technical features:
- Input Low Band: 10.7...11.70 GHz
- Input High Band: 11.7...12.75 GHz
- Output Low Band: 950...1950 MHz
- Output High Band: 1100...2150MHz
- Gain (dB) 57dB (Min)
- Low noise: 0,1 dB
- Output Connector Type 75Ω Female Connector
- L.O. Frequency Low Band: 9.75 GHz, High Band: 10.6GHz
- L.O. Frequency Stability ± 0,5MHz (Max.)
- DC Current Consumption: 140mA (Max.)
- Operating Voltage: Vertical: 11...14 Vdc, Horizontal: 16...20 Vdc
- Band Switching: Low Band: 0 Hz, High Band: 22 KHz ± 4KHz
- Storage Temperature: -20°C ... +70°C
- Warranty: 2 years
