OS NINO+ DVB-S2
Product Code:
01-08-0016
  • Manufacturer:
    EDISION
  • Barcode:
    5200378400722
  • Pieces per package:
    10
  • Pieces per pallet:
    600
  • Net weight:
    0.52 kg
  • Gross weight:
    0.71 kg
  • Dimensions per package:
    50x29x18
  • Uploaded on:
    17-07-2019
  • The product was removed:
    28-02-2024

The OS NINO+ DVB-S2 E2 LINUX Full High Definition receiver with H.265/HEVC decoding support, is the new member in the E2 LINUX series receivers from EDISION. It combines all the updated technical features to provide you with enjoyable use of all its advanced specifications, in an incredibly compact size. Some of its features include: E2 Linux operational system, BROADCOM MIPS Dual Core @ 742MHz processor, 512MB SLC NAND Flash / 512MB DDR3 memory, Full Media Player along with the ergonomical and multifunctional IR remote control EDI-RCU OS 2-in-1! All these, plus the all-around EDISION quality and support included!

Technical features:
- Type: DVB-S2 digital satellite receiver E2 Linux Full HD
- 1 x Tuner DVB-S2
- Linux operational system
- Processor: Mips Broadcom 742 MHz Dual-Core
- Speed up to 742MHz and up to 2000 DMIPS
- 512MB SLC NAND Flash / 512MB of DDR3 memory
- Video Resolution: 1080p, 1080i, 780p, 720p, 576p, 576i, 480p, 480i
- Full Media Player
- Web Browser and supports HbbTV
- Free Internet Streaming TV and Radio
- Decoding: H.265/HEVC decoding support (covered by patents listed at patentlist.hevcadvance.com)
- Unlimited channel memory
- Hyper-sensitive tyner for receiving even the weak-signal channels
- 1 x Smartcard reader
- 10/100 Mbps Ethernet interface
- 2 x USB2.0 PVR Ready ports
- 1 x HDMI 1.4a Connection
- 1 x jack to RS232
- 1 x jack to IR
- 1 x S/PDIF
- Channel switch in less than 1 second.
- Extensive ΕPG and programmed viewing via EPG
- Expandable Add-Ons & Plug-Ins
- Supports Bouquet list
- Multilingual OSD, Skin - support
- Channel search: Fully automatic/Manual
- Time Shift function and Multi Timers
- Supports Teletext & and OSD and VBI subtitles
- Compatible with DiSEqC 1.0, 1,1 ,1.2 and 1.3 (USALS)
- Power consumption less than 0.5 Watt, in low-power stand-by mode

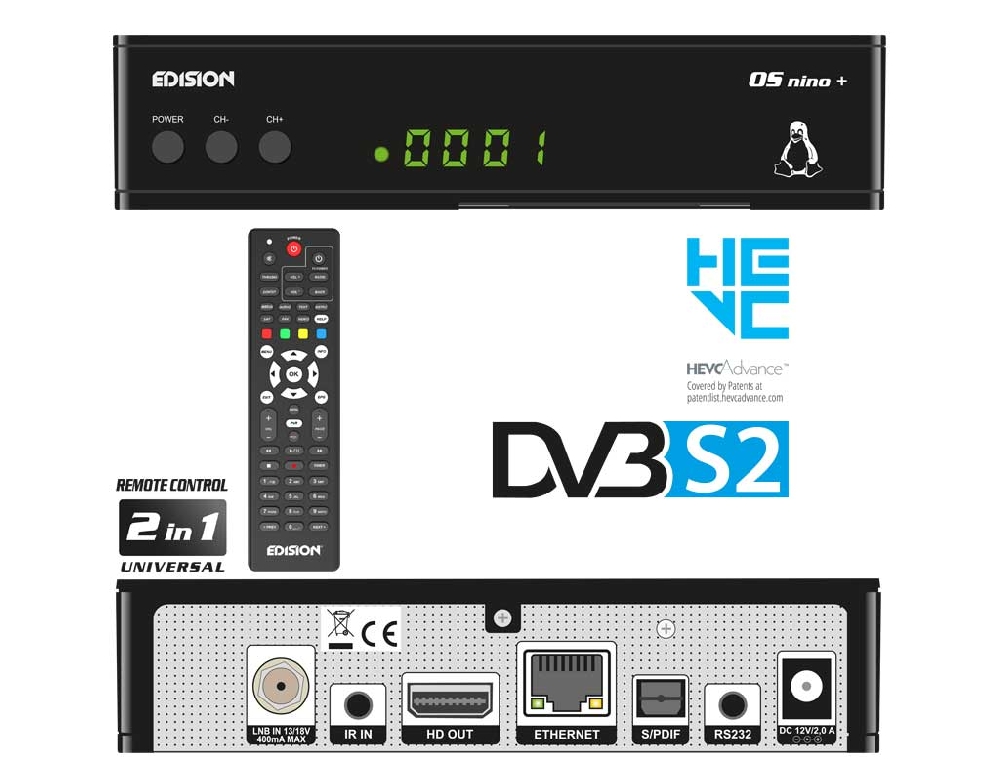

Front Panel:
- Display: LED (Standby, Recording)
- 1 x Smartcard slot
- Display Buttons: Power, Channel -/+

Side Panel:
- 2 x USB 2.0

Back Panel:
- Input Sat-IF: 1x F-type
- Connection TV: 1x HDMI
- Video output (digital): 1x HDMI
- Audio output (digital): Standard optical (S/PDIF)
- 1 x Ethernet plug
- 1 x jack to RS232
- 1 x jack to IR
- 1 x DC in (for the external PSU)

Package contains:
- EDISION EDI-RCU OS 2-in-1 remote control
- External PSU 12v
- Jack to RS232 cable
- Start Guide EN/DE/GR
- 2 x "ΑΑΑ" batteries

General:
- Power Supply: 100 - 240 AC 50/60Hz
- Input Voltage: DC 12V 2.0A
- Power Consumption: max. 15.0W
- Power Consumption in standby: <0.5W
- Operating Temperature: 0°C ... +50°C
- Storage Temperature: -20°C ... +70°C
- Humidity Range: 10% ... 85% RH, non-condensing
- Dimensions: (W x H x D): 145x35x120 (mm)
- Weight: 0,5 kg
- Color: black
- Warranty: 2 years
