Televes 2123 Data Cable DK6000 Cat.6 U/UTP Dca Cu LSFH 6.2mm Violet, in 305m. reel, complies with the standard for Gigabit Ethernet and it is backwards compatible, with the standards of the inferior categories (Cat 5/5e and Cat 3). It is compatible with PoE/PoE+ (Power over Ethernet) technology, allowing the cable to power network devices. This cable is tested and approved by the Intertek (ETL Verified Mark) laboratory according to the available certification and allows to achieve transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps of throughput. It includes characteristics and specifications to avoid crosstalk and noise. This type of data cable can be used in 10BASE-T, 100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems. It complies with TIA/EIA-568B.2-1 (10 Base-T, 100 Base-T and 1000 Base-T network standards) and has crucifix type padding. It includes rip cord to make it easier to strip the cable.
Technical features:
- Class: Cat 6
- Type: U/UTP Cat. 6 Dca CU LSFH 23AWG
- LSFH (Low Smoke Free of Halogen) outer sheath, 0.50mm thick and 6.2mm diameter
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation, 0.95 mm diameter
- EuroClass: Dca
- Conductor: material: Solid copper, diameter (mm): 0.55 ± 0.02, type: AWG 23
- Isolation material: Polyehtylene, diameter (mm): 0,95.
- Filler: Crucifix type
- Outer sheath: material: Low Smoke & Free Halogen (LSFH)
- Diameter (mm): 6,2 ± 0,2, thickness (mm): 0,50 ± 0,05
- Nominal impedance Ohm: 100 ± 15
- Max. conductor resistance: Ω/100m < 9.38
- Transfer rate up to 1Gbps
- Frequency range of up to 250 MHz and up to 400MHz in some references
- Includes rip cord to make it easier to strip the cable
- Nominal velocity %: 72
- Working voltage V: 300
- Enviromental Operating temperature °C -25 ... 70
- Color: Violet

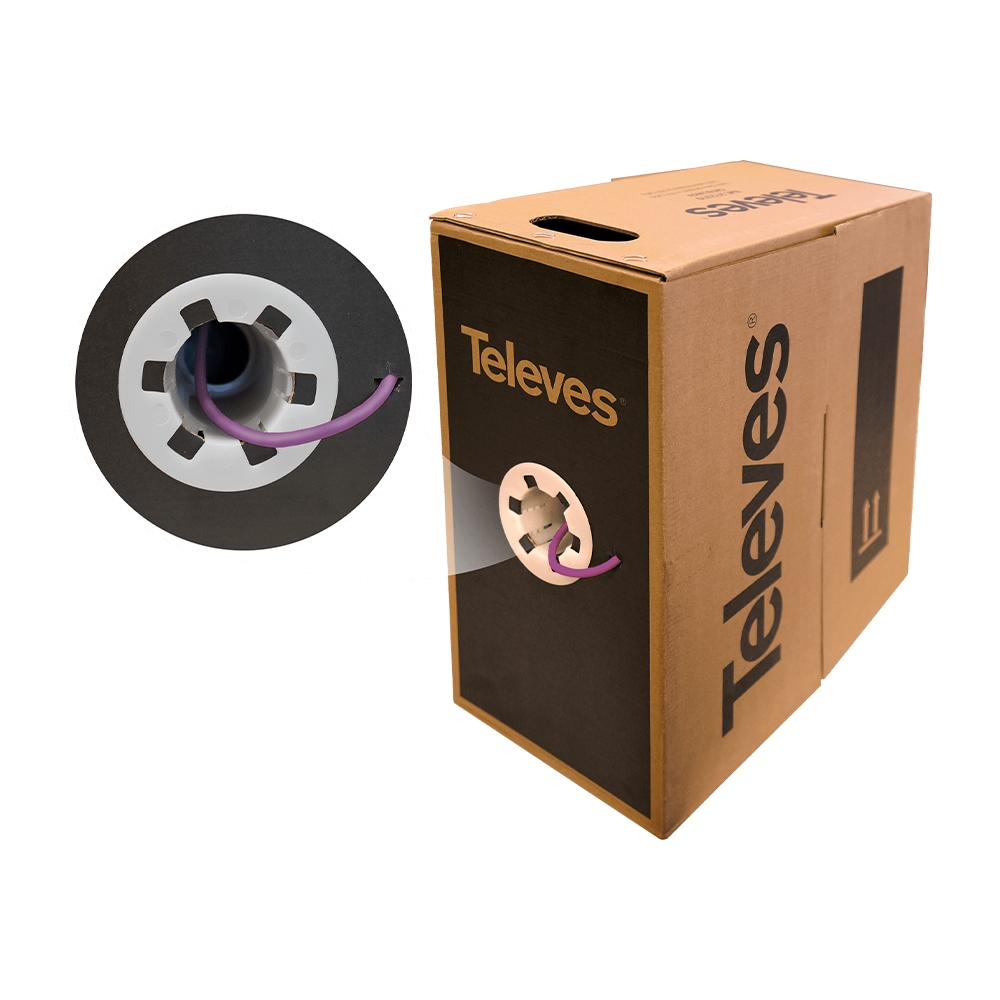

- Packing: Reel 305m (pull box), with cable consumption indicator
- Packing Quantity: 1 pc / 305m
Frequency (MHz) / Attenuation (dB/1m):
- 0,772 / 0.18
- 1 / 0.20
- 4 / 0.38
- 8 / 0.54
- 10 / 0.60
- 16 / 0.76
- 20 / 0.85
- 25 / 0.96
- 31,25 / 0.107
- 62,5 / 0.155
- 100 / 0.199
- 125 / 0.224
- 200 / 0.292
|
