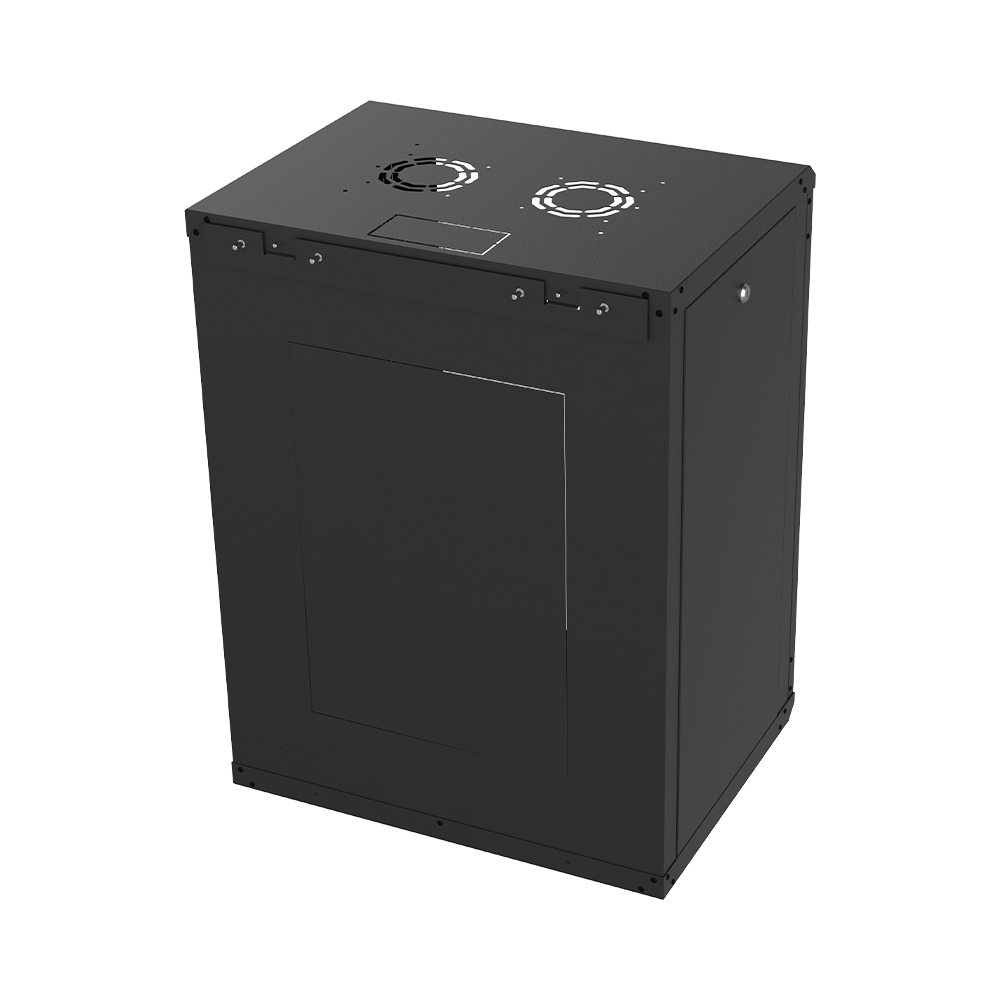

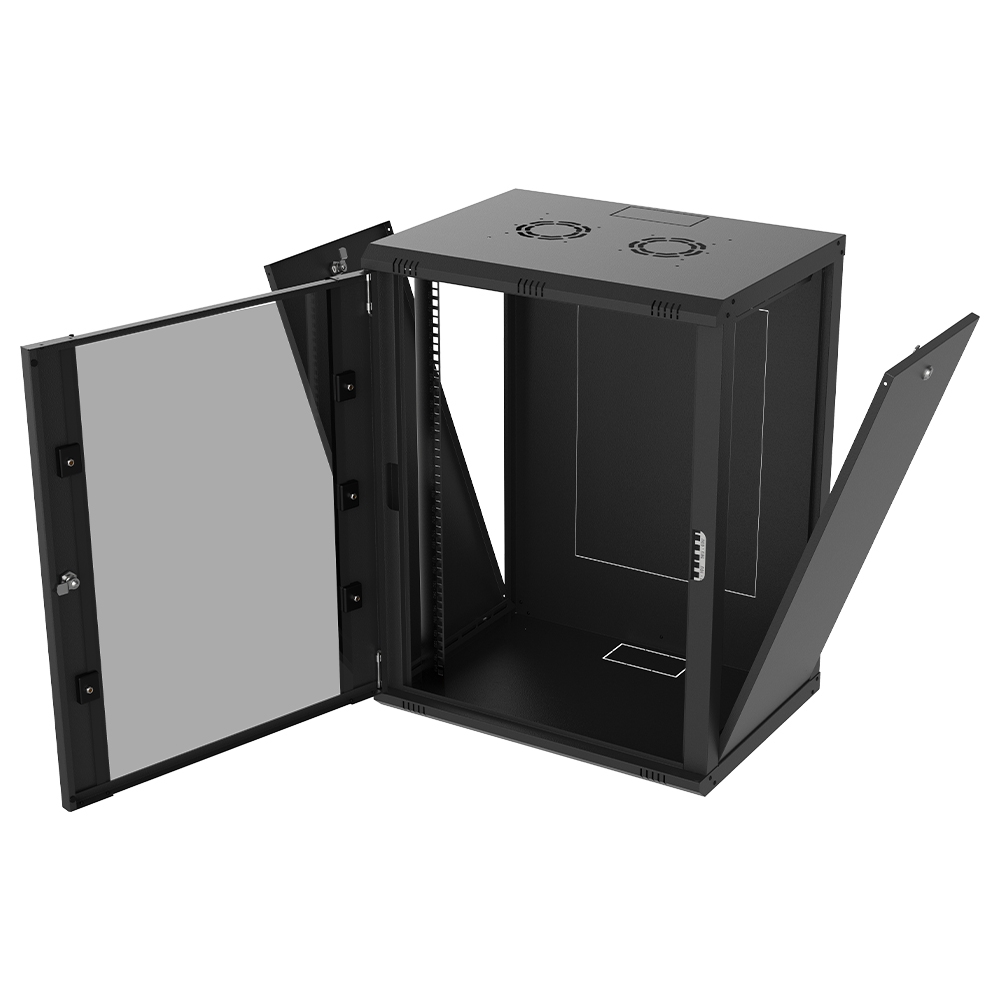

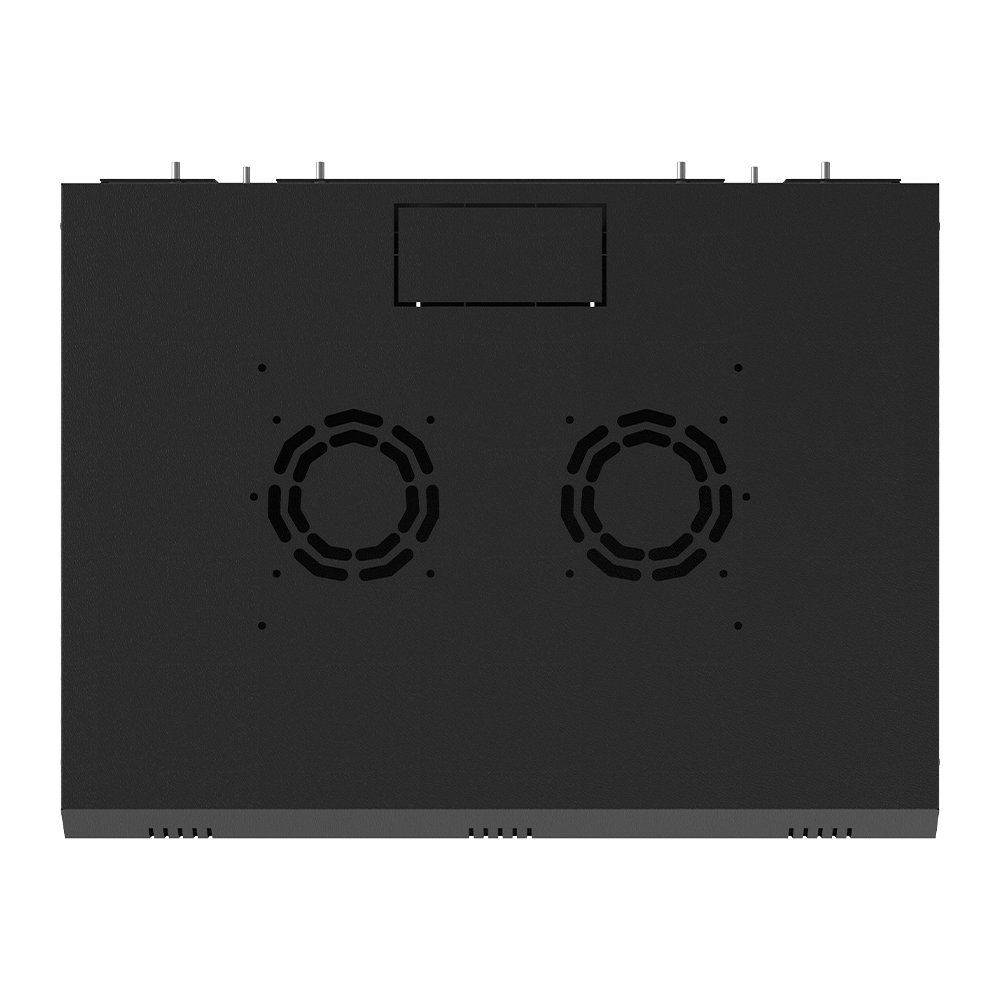

EDISION SOHO pro Wall-Mounted Cabinet 19" 600x450 16U black, is an excellent choice of assembled rack cabinet, ready to install. It has a front door with a metal frame and 4.0mm glass with a security lock, which has an easy-to-remove system that allows you to change the opening direction in the minimum possible time. In addition, the side doors can be opened, by using the on-board lock. Also, it has an easy-to-install wall mount, 3 cable routing ports on the top, bottom and rear, with removable covers for protection from dust entering the cabinet. The cabinet features passive ventilation on the top, which can be easily upgraded to active, with the addition of the optional extra product code of fan KIT.
It is designed and intended for small and medium-sized Small Office/Home Office installations for Switch, Router, Patch Panel, UPS, RF, CCTV and similar network equipment installations, providing you with selectable positioning inside and a lock, while it features an easy-to-use and durable construction, with modern aesthetics.
Technical Specifications:
- Type: Wall-Mounted Rack Cabinet 19"
- Code: 60-02-0104
- Rack units: 16U
- Dimensions: 600 (W), 450 (D), 785 (H) mm
- Rack rails width: 19" / 483 mm (W)
- Rack rails thickness: 1,5 mm
- Number of doors: 1
- Front door: Steel frame and glass 4.0mm
- Rear door: No
- Removable side panels: Yes, with lock
- Locking: on the front door and on the side panels
- Cable entry: on the top/bottom and rear with removable covers
- Ventilation slots: Yes
- Grounding: Yes
- IP protection: IP20
- Easy Hang System: Yes
- Load capacity: up to 80 kg
- Material, thickness: Steel 0,8mm
- Surface finishing: Electrostatic painting
- Color: RAL 9005 Black
- Net Weight: 21,0 kg
- Packing type: Carton Box, Assembled
Package includes:
- Wall-Mounted Cabinet 16U (?ssembled)
- Grounding KIT (3x cables, cage nuts, washers)
- KIT Screws M6 (10pcs)
- 2 x Keys
