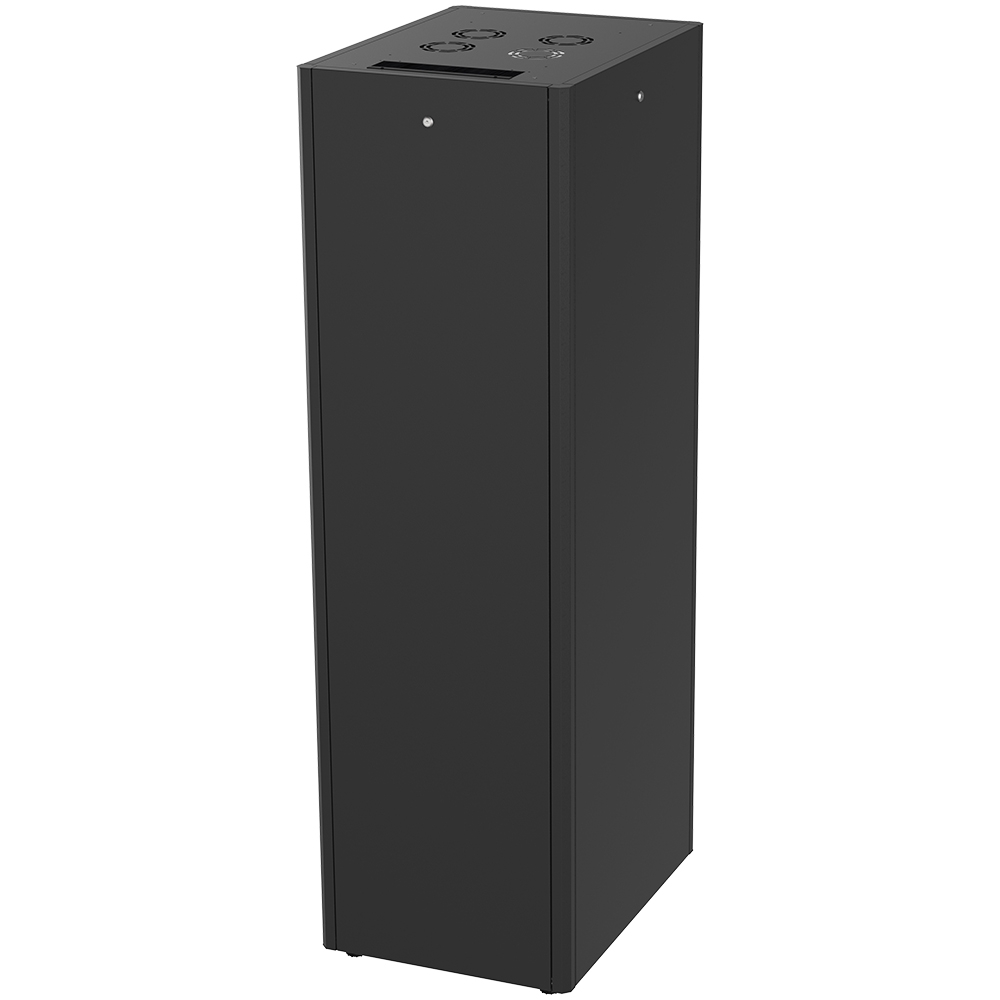

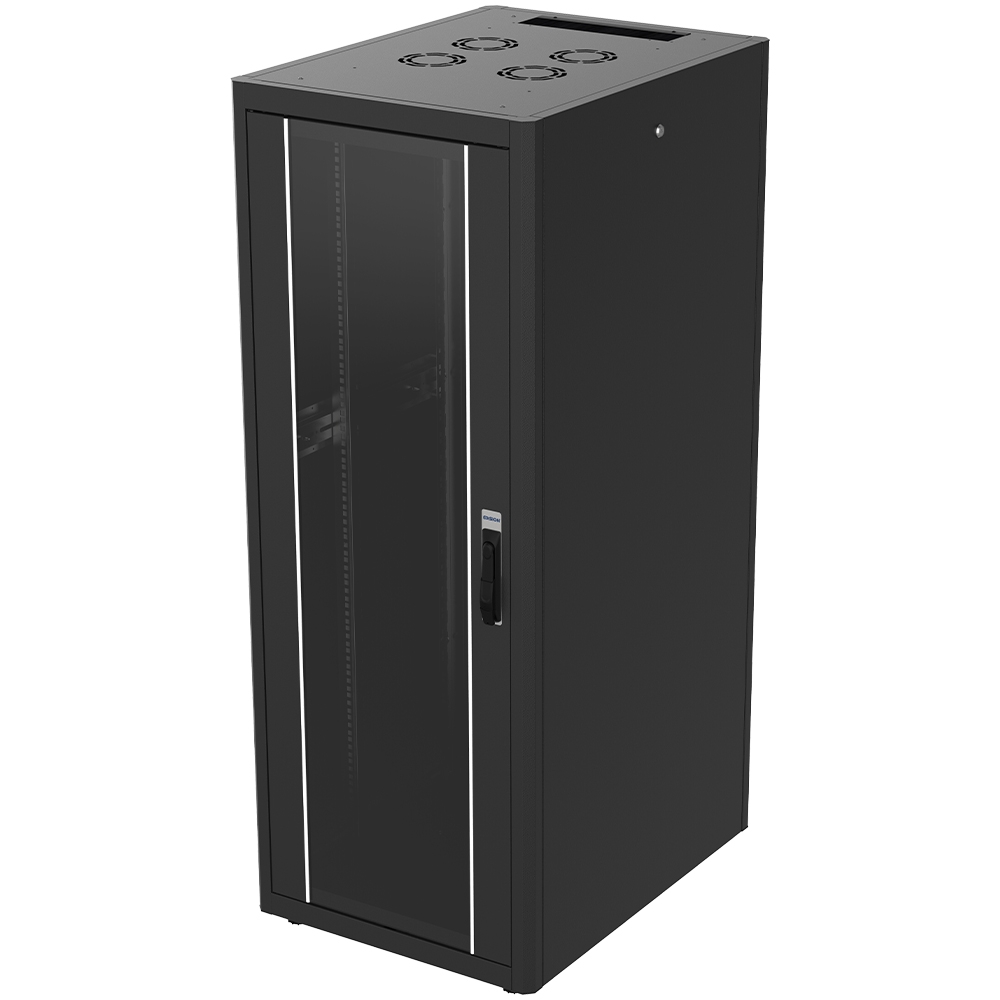

EDISION SELECT Free-Standing Cabinet 19" 600x800 42U black, is a professionally advanced choice of assembled, heavy-duty rack cabinet, ready to be installed. This standalone cabinet, with modular construction, provides you with the possibility of sequential installation/expansion within the control room, according to the initial and future needs of your projects, with 2 cable routing doors, one on top and one on the bottom side.
This SELECT-range cabinet features a front door with a metal frame and 4.0mm glass with a security lock and an easy door removal system that allows you to change the opening direction in the minimum possible time. Additionally, the side doors are lockable.Moreover, it has integrated "U" numbering, height-adjustable ground spacers, a special lock with integrated handle and the ability to add a fan KIT (optional extra accessory), onto the top section.
It is designed and manufactured for medium and large installations of Data centers, System Rooms, TV Headends, telecommunications systems and similar projects, providing you with selectable positioning and internal placement arrangements, while at the same time it features an easy-to-use and durable construction with modern aesthetics.
Technical Specifications:
- Type: Free-Standing Rack Cabinet 19"
- Code: 60-02-0258
- Rack units: 42U
- Dimensions: 600 (W), 800 (D), 1986 (H) mm
- Rack rails width: 19" / 483 mm (W)
- Rack rails thickness: 1,5 mm
- Number of doors: 2
- Front door: Steel frame, glass 4.0mm and swivel handle lock
- Rear door: Removable panel with lock
- Removable side panels: Yes, with lock
- Locking: Yes, on all sides
- Cable entry: 1x brush on the top, 1x plastic cover on the base
- Ventilation slots: Yes
- Grounding: Yes
- IP protection: IP20
- Easy Hang System: No
- Load capacity: up to 600 kg
- Material, thickness: Steel 1,2 mm
- Surface finishing: Electrostatic painting
- Color: RAL 9005 Black
- Net Weight: 87,0 kg
- Packing type: Pallet, Assembled
Package includes:
- Free-Standing Cabinet 42U (?ssembled)
- Grounding KIT (3x cables, cage nuts, washers)
- Ground spacers (4pcs)
- 2 x Keys
Relevante Produkte
-
SELECT Free-Standing Cabinet 19" 600x800 32U black
Mehr -

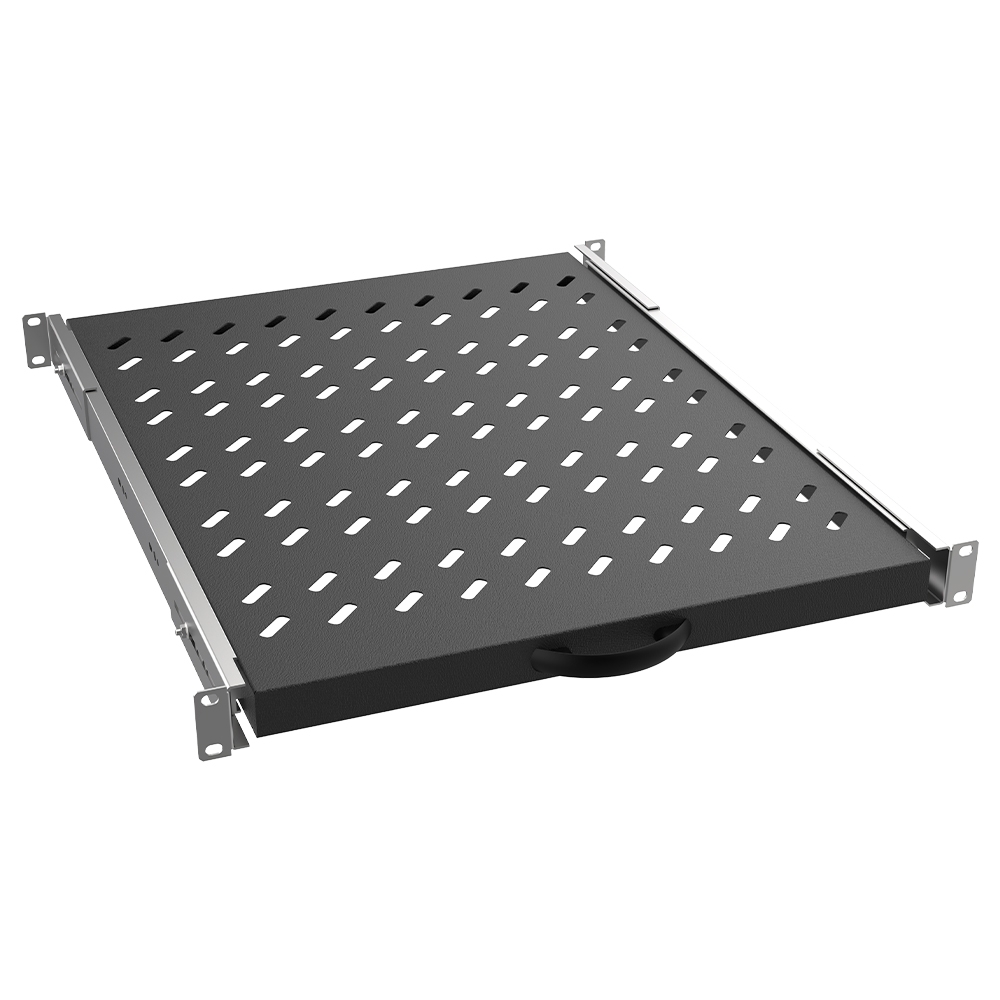

Sliding Shelve 19'' 1U D57cm for D80cm Cabinet 50kg
Mehr -
Cable Manager 19'' 1U Ring with Brush
Mehr -
Blank Panel 19'' 2U
Mehr -
Mounting Screws Set M6 50pcs
Mehr -
PDU Outlet Strip 19'' 1U Alu 6 Schuko 16A 4000W w. Switch
Mehr -

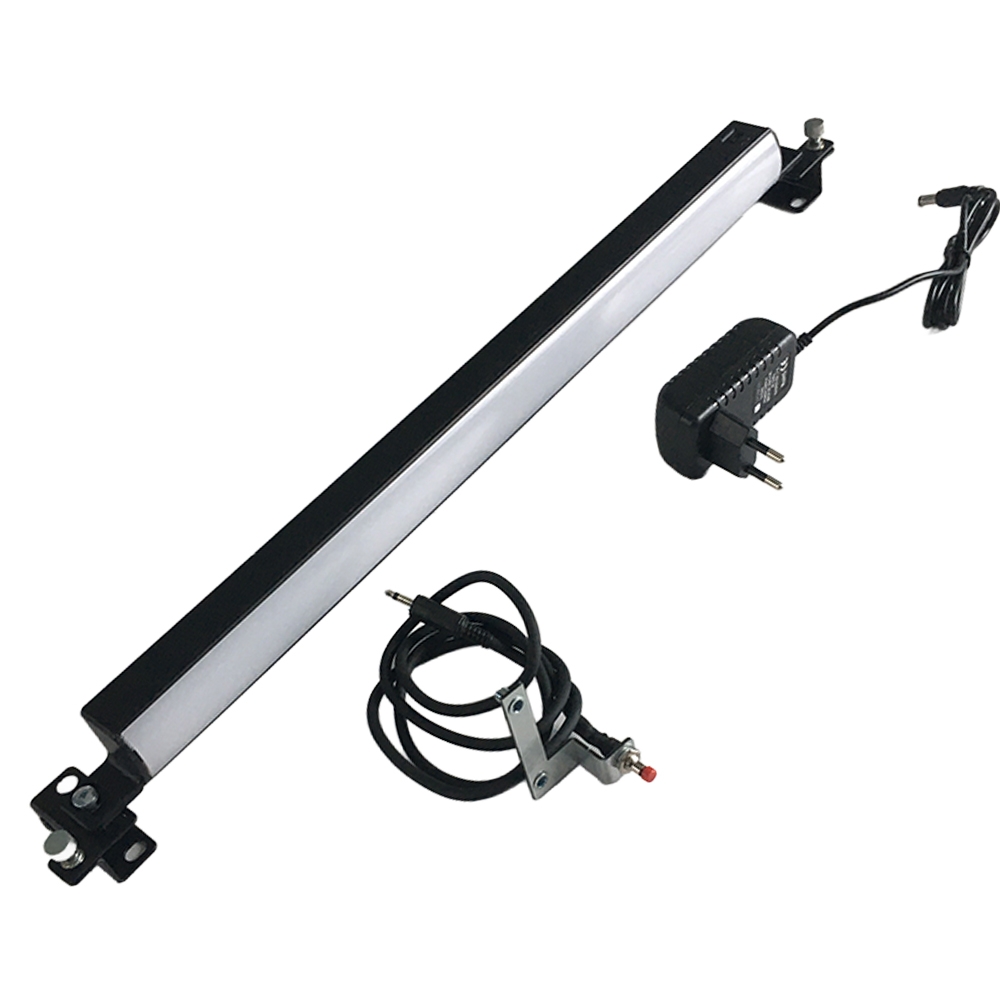

LED Lighting Set 19'' 1U with Door Switch
