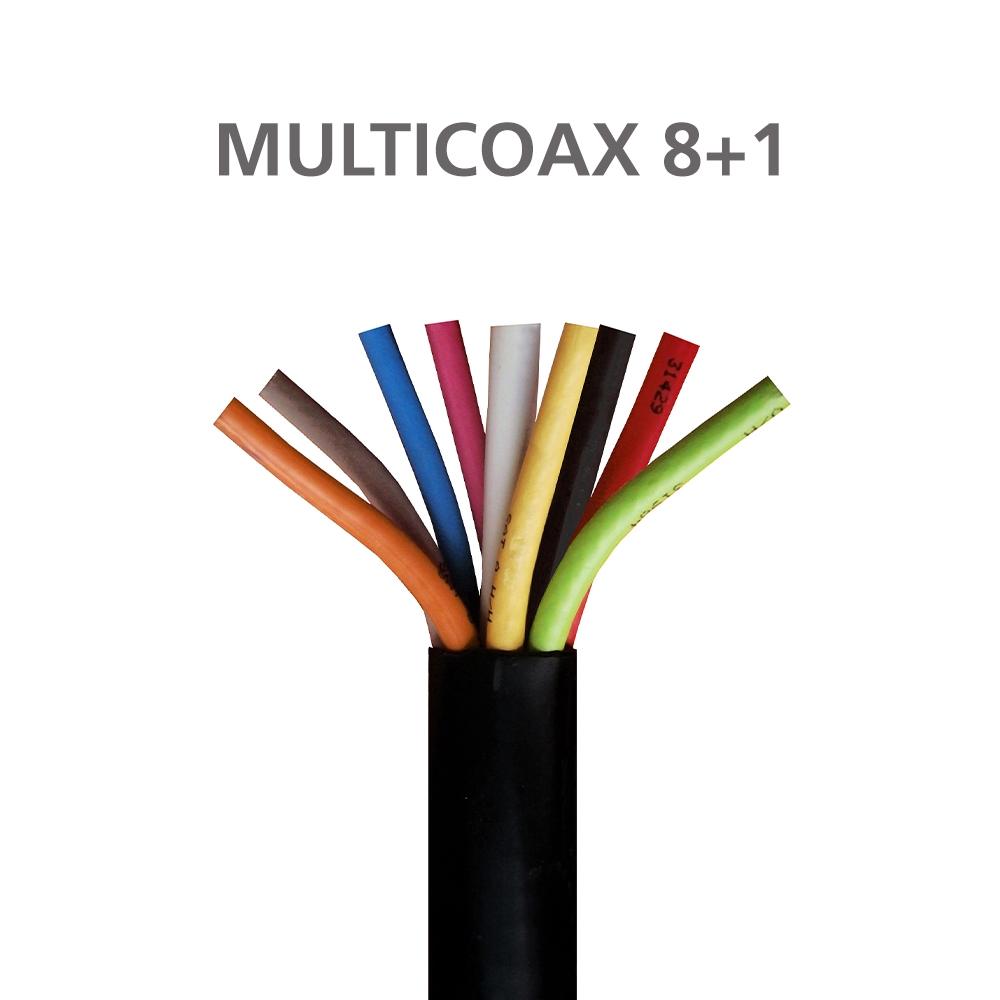

Multicoaxial cable (9cables), for 2 satellites: each 4 polarities/band: green, red, yellow, black, orange, brown, blue, purple and white for terrestrial, composed of cables of different colours in order to ease the connection in satellite instalations. Multicoax with black PVC cover.
Technical features:
- Type: Multicoaxial Cable 8+1, double shielded, 9 x RG-6, 19VAtC
- Suitable for Terrestrial and Satellite reception and Multiswitch installations
- Class A
- CPR Class: Eca
- Standards: EN 55075
- Inner Conductor: Diameter 1,02 mm / Material: Copper Clad Steel (CCS)
- Foam Dielectric: Diameter 4,57 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL)
- Braid: Aluminum mesh (AL) 64x0,12 mm
- Jacket each RG6 cable: Diameter 6,8mm / Material: PVC white, green, red, yellow, black, orange, brown, blue, purple
- Protective Jacket: Diameter 28 mm / Material: PVC black
- Impedance: 75 Ohm
- Shielding: >85 dB
- Packing: Wood Reel 100m
Attenuation dB per 1 meter:
- 860 MHz / 0,21 dB
- 2150 MHz / 0,33 dB
