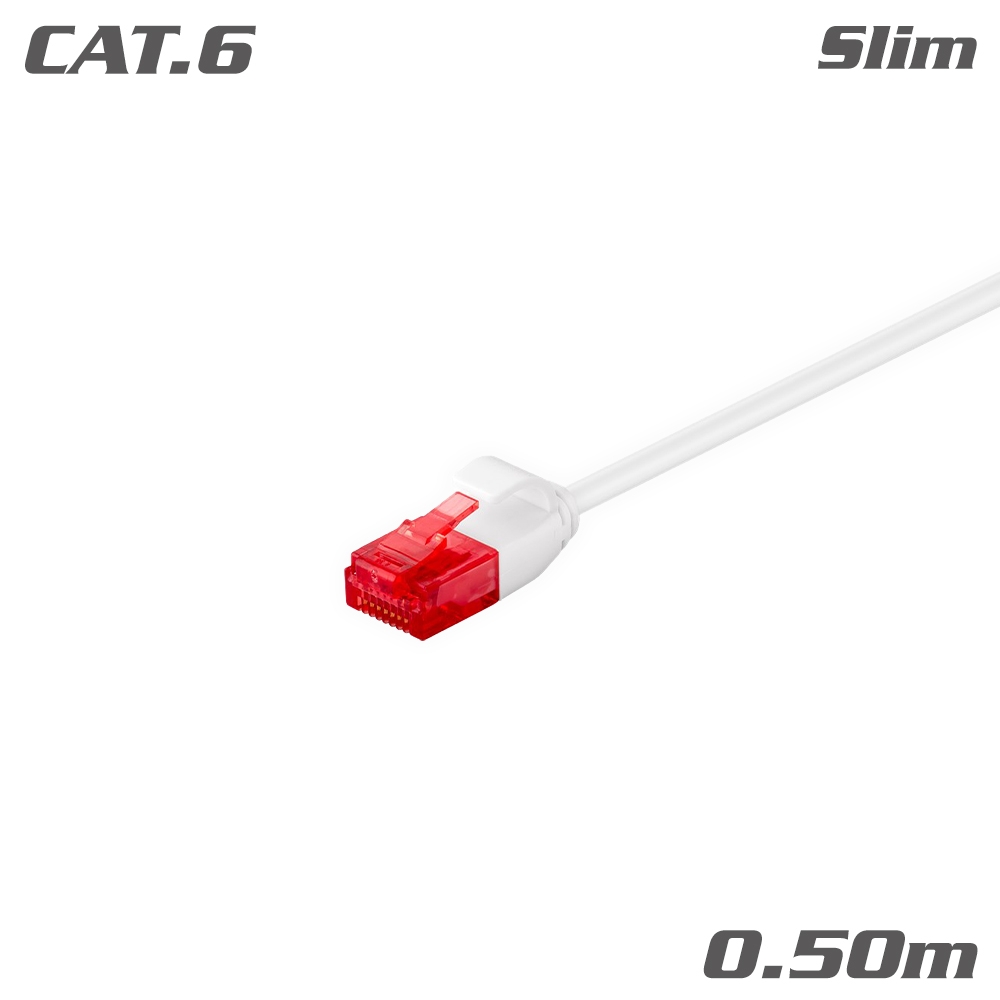

The 93691 Patch Cable Slim Cat.6 U/UTP CU White 0.50m, is a ready-made, terminated SLIM U/UTP cable, for high-speed Gigabit Ethernet 10/100/1000 Mbit/s network connections, facilitating the circulation of ventilation air within the rack. It has pre-installed, 2 x short-RJ45 terminals with gold-plated contacts, plug lever protection on both sides, and also a length indicator. The pair standard is in accordance with EIA/TIA 568B. It is suitable for Gigabit network connections (10/100/1000 Mbit) and also suitable for Power over Ethernet (PoE).
Technical features:
- CAT 6 U/UTP specification, length 0.50 meters
- Suitable for Power over Ethernet (PoE)
- Length indication: On the terminal
- Shielding: No
- Contacts: EIA/TIA-568 B
- Bandwidth: 250 MHz
- AWG 30/7 (stranded)
- Connections: short-RJ45 male plug (8P8C), 11.6 x 26.7 mm
- Plug lever protection on both sides
- Outer diameter: only 3.6 mm
- Bending angle: 28.8 mm
- Inner conductor material: CU (copper)
- Outer sheath material: PVC
- Operating temperature: -20 C ... +60 C
- Markings: CE, WEEE
- Color: White
