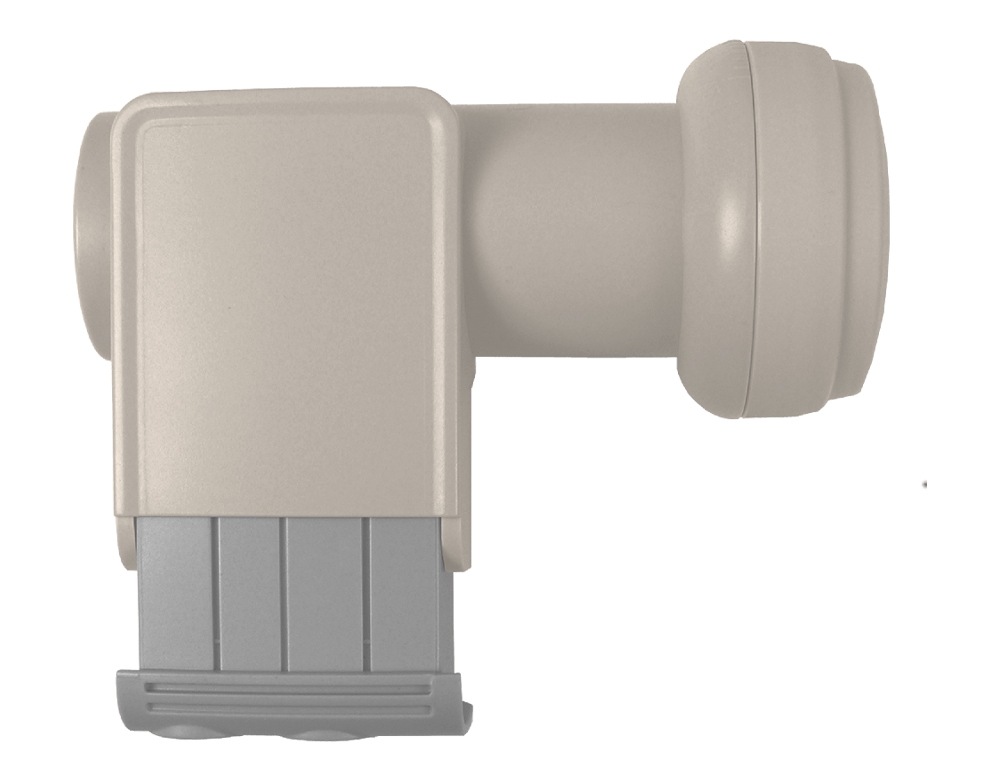

The TELEVES 747402 Wideband LNB converter, is compatible with Televes Overlight series and it captures the entire frequency spectrum of a satellite and provides them through two outputs (V-H) in a frequency range between 290 and 2340 MHz. It is designed to work with Overlight stations (RF to Fiber Optic converters). It is designed for low visual impact and it has small casing, while it produces high gain, with low noise figure. Its working terperature range (-40...+60 Celcius), makes it ideal for installations with extreme temperature conditions.
Technical features RF to FO OPT converter/TX:
- Compatible with 40-mm LNB supports
- Televes Overlight series compatible
- Power feeding through the Overlight optical transmitter (ref. 237501 or 237502) and low power consumption
- RF Input Frequency Range GHz 10.7 - 12.75
- RF Output Frequency Range MHz 290 - 2340
- Gain dB 57
- Noise Figure dB 1
- Input voltage V 10,5 ... 21
- Current consumption (max) mA 100
- Outputs Connectors 2 X “F”
- Operating Temperature ?C -40...+60
- Dimensions (W x H x D) 93 x 59.5 x 126 mm
